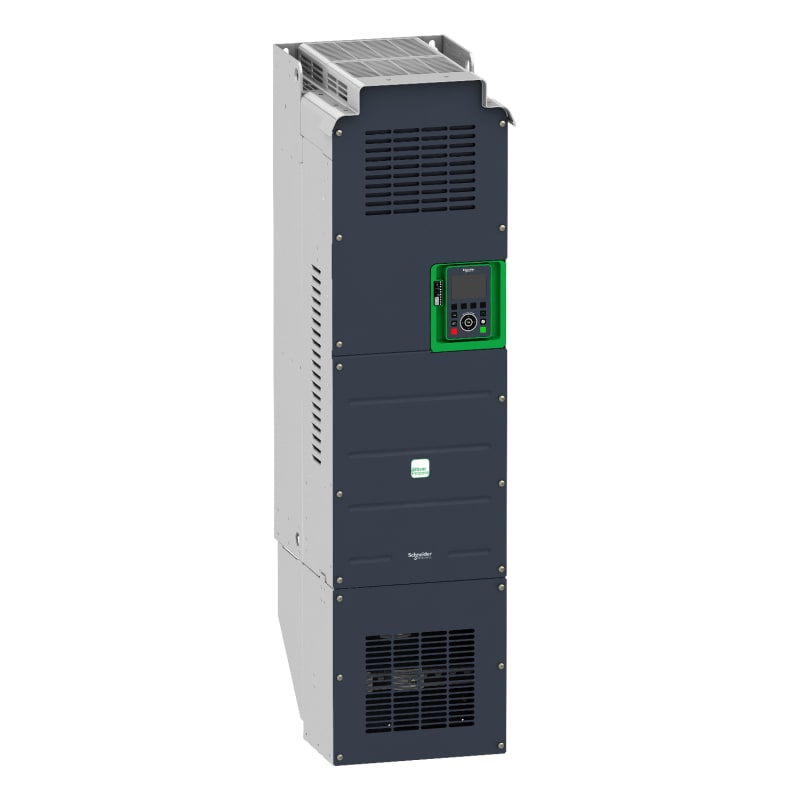

ATV630 IP00 110kW 400V DNV (ATV630C11N4428)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV630C11N4428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 110KW 400V marine sertificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV630C11N4428
- EAN / GTIN
- 3606481714787
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 400 V
- IP rating
- IP00
- Power
- 110 kW
- Width
- 320 mm
- Height
- 852 mm
- Depth
- 390 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Degree of protection (IP)
- IP00
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 110 kW
- Max. output at quadratic load at rated output voltage
- 110 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 211 A
- Country of origin
- India
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481714787
- SAP 1200722447
- Code 83837228
Product Documentation
