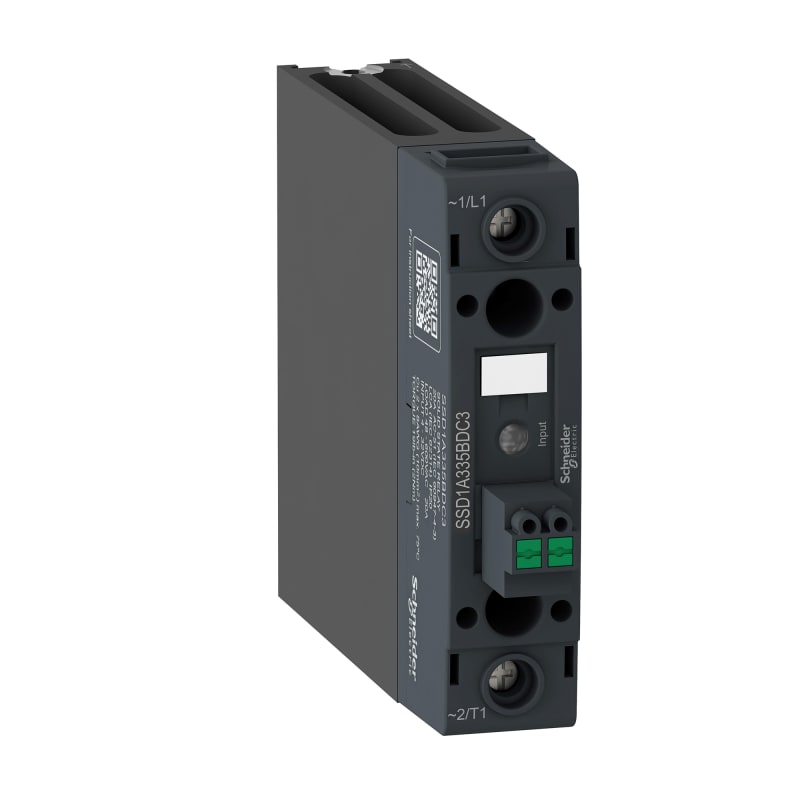

Schneider Electric Harmony, Solid state relay, 35 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A335BDC3

Schneider Electric SSD1A335BDC3 Solid state relay-DIN rail, 1-phase, 48-600VAC output, 4-32VDC control, 35A.

Manufacturer part number (MPN)

SSD1A335BDC3

EAN / GTIN

3606489807931

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Voltage

48-600 V AC

Range of product

Harmony Solid State Relays

Product or component type

Modular DIN rail relay

Device short name

SSD1

Number of channels

1

Number of phases

1 phase

Product configuration type

Contactor configuration with pluggable spring input

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

rated current

35 A

Output switching mode

Zero voltage switching

operating frequency

47...440 Hz

Rated duty

Uninterrupted

Output voltage

48...600 V AC

control circuit voltage

4...32 V DC

Connections - terminals

Plug-in spring terminals, clamping connection capacity:0.13...3.30 mm², 26 AWG...12 AWG for input; telescopic screw, clamping connection capacity:0.75...10 mm², 20 AWG...8 AWG for output

Dielectric strength

4 kV AC for input/output circuit; 4 kV AC for input or output to case

rated impulse withstand voltage

6 kV for input/output circuit; 6 kV for input or output to case

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for control voltage

pick-up voltage

4 V DC turn-on

drop-out voltage

1 V DC turn-off

input current range

10…15 mA

solid state switching type

Zero voltage switching

Load current

0.2…35 A

transient overvoltage

1200 V

Inrush current

1350 A at 60 Hz

Maximum voltage drop

<1.15 V on-state

motor controller rating

1.5 kW/2 hp at 120 V AC; 3.73 kW/5 hp at 240 V AC; 7.46 kW/10 hp at 480 V AC

Electromagnetic compatibility

Electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2; Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2; Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6; Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4; Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3; Surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5; Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5; Radiated emission environment B for DC input supply conforming to IEC 60947-4-3; Conducted emission environment B for DC input supply conforming to IEC 60947-4-3

device form designation

Form 5 semiconductor output DOL contactor

Maximum I²t for fusing

8320 A².s for 10 ms; 7593 A².s for 8.33 ms

Maximum leakage current

1 mA off-state

DV/dt

500 V/µs off-state at maximum rated voltage

Response time

0.5 cycle (turn-on); 0.5 cycle (turn-off)

Power factor

0.5 with maximum load

short circuit protection coordination

Type 1; Type 2

Overvoltage category

III

Width

22.5 mm

Height

94.6 mm

Depth

134.7 mm

test button

Without test button

Product weight

0.3 kg

Device presentation

Complete product

[Ui] rated insulation voltage

600 V

Flammability rating

V-0 conforming to UL 94

Vibration resistance

0.75 mm (f = 10…150 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27; 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Pollution degree

2

Standards

IEC 61373:class B: category 1; IEC 60947-4-3; IEC 62314; IEC 60950-1

IP degree of protection

IP20

Ambient air temperature for operation

-40…80 °C

Ambient air temperature for storage

-40…100 °C

Country of origin

MX

Warranty (in months)

18

HS Code

8536.90

• EAN 3606489807931
• SAP 1200498754
• Code 82619643
