Schneider Electric LV850037 Digital Module, IDMTL Overcurrent, MicroLogic X for MasterPact MTZ
Pricing
Request a quote
We reply within 24 hours
Product Description

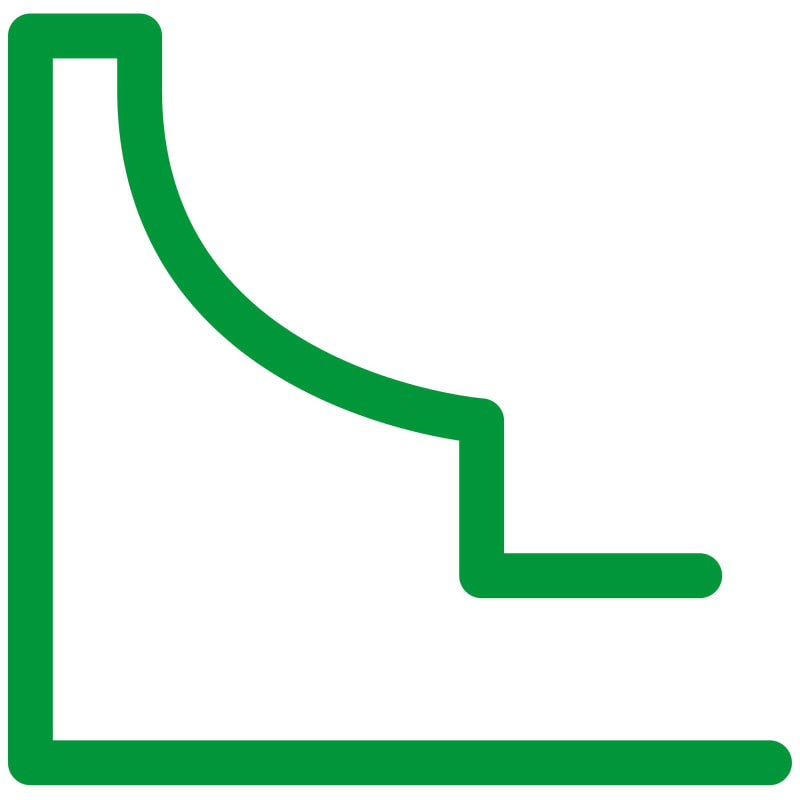

Schneider Electric LV850037 is a digital module providing an IDMTL overcurrent protection curve (ANSI 51) for MicroLogic X control units on MasterPact MTZ air circuit breakers. Selectable curves include SIT, VIT, EIT and HVF, supporting selectivity with upstream protection devices. Compatible with MicroLogic 2.0/3.0/5.0/6.0/7.0 X and 3.0/5.0/6.0 Xi units on MTZ1, MTZ2 and MTZ3 frames.
Technical Specifications
- Manufacturer part number (MPN)
- LV850037 EAN / GTIN: 3606481436092 Sales unit: pcs Range: MasterPact Application description: IDMTL overcurrent ANSI 51 Range compatibility: MasterPact MTZ1 circuit breaker; MasterPact MTZ2 circuit breaker; MasterPact MTZ3 circuit breaker Product compatibility: control unit MicroLogic 2.0 X; control unit MicroLogic 3.0 X; control unit MicroLogic 5.0 X; control unit MicroLogic 6.0 X; control unit MicroLogic 7.0 X; control unit MicroLogic 3.0 Xi; control unit MicroLogic 5.0 Xi; control unit MicroLogic 6.0 Xi Function of module: Protection Service description: Provides overcurrent protection based on IDMTL tripping curve; IDMTL (inverse definite minimum time lag) curves are: SIT, VIT, EIT, HVF Service benefits: Facilitates selectivity with an upstream protection device Energy management: Network management (option) Protection type: Overcurrent protection ANSI code: 51 (option) Software name: EcoStruxure Power Commission Country of origin: FR Warranty (in months): 18 Accessory: No Spare part: No
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606481436092
- SAP 1200498205
- Code 82621649
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Harmony, Solid state relay pre assembled, 2 A, random switching, screw sockets, input 16...30 V DC, output 24...250 V AC SSL1A12BDRPV
Schneider Electric
Schneider Electric Controller with 8 inputs 4 outputs monitors expansion modules with screw term XPSMCMC10804
Schneider Electric
ATV630 IP00 110kW 400V DNV (ATV630C11N4428)
Schneider Electric
Schneider Electric Harmony, Solid state relay, 35 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A335BDC3
Schneider Electric
Schneider Electric High power contactor,TeSys Giga 630,4P(4NO),AC-1 <=440V 1050A,advanced version,200-500V AC/DC wide band coil LC1G6304LSEA
Schneider Electric
Schneider Electric TeSys F - specific contactor coil - 240 V AC 40...400 Hz low consumption LX9FG240
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton black with boot XB4BP21GEX
Schneider Electric
Schneider Electric Preventa XPE, Single foot switch, metal, orange, with cover, trigger mechanism, 1 NO + 1 NC XPER510
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV850037?
- LV850037 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV850037.
- What is the HS code for LV850037?
- The customs tariff (HS) code for LV850037 is 8536.30.
- Who manufactures LV850037?
- LV850037 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV850037?
- Yes — the LV850037 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV850037?
- The minimum order quantity is 1.
- Is LV850037 available?
- Yes — LV850037 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
