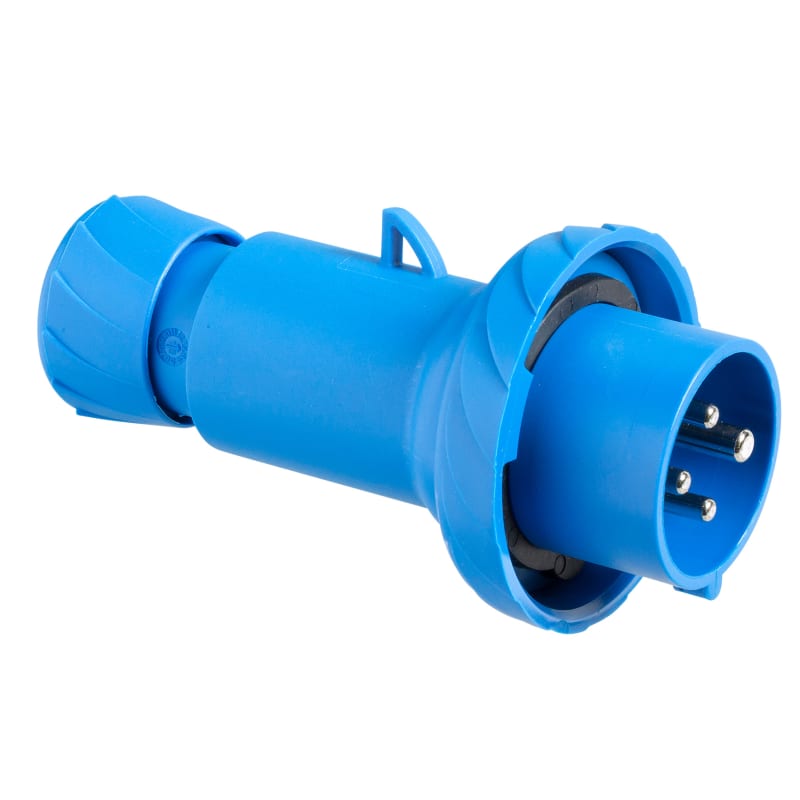

Schneider Electric Wander plug, Mureva PK, Fast connection, 32A, 3P+E, 220V, IP67 PKX32M724

Schneider Electric PKX32M724 PratiKa plug - straight - 32 A - 3P + E - 200.250 V AC - IP67.

Manufacturer part number (MPN)

PKX32M724

EAN / GTIN

3303432009700

Sales unit

pcs

Package quantity

6 pcs

Voltage

230 V

IP rating

IP67

Rated current

32 A

Range

Mureva

Product or component type

Wander plug

Device short name

Mureva plug

Plug, socket category

Low voltage

Poles description

3P + E

Network type

AC

Outlet standard

Industrial

Plug, socket, control station shape

Straight

[In] rated current

32 A

[Ue] rated operational voltage

200...250 V

Network frequency

50/60 Hz

Ground lug clockwise position

9 h

Plug, socket material

Housing: self-extinguishing engineering polymer

Contacts material

Sleeves: brass

Connections - terminals

Fast connection

Cable cross section

2.5…6 mm²

Cable outer diameter

11.5…21 mm

cable entry

Cable gland; Fair lead

Thread type

Pg 21

Product weight

0.292 kg

Height

152 mm

Width

95 mm

Depth

95 mm

Colour

Grey (RAL 7035)

Voltage colour

Blue

Standards

IEC 60309-2; IEC 60309-1

IP degree of protection

IP67 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-11

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Operating altitude

2000 m

Ambient air temperature for operation

35 °C ( 86400 s ) ; -25…40 °C

Country of origin

IT

Warranty (in months)

18

Number of poles

4

Material

Plastic

Surface treatment contacts

Nickel-plated

IEC-amperage

32 A

Connection system

Screwless terminal

Insert direction

Straight

Phase inverter

No

Contact material

CuZn

Degree of protection (IP)

IP67

Military model

No

Clock hour position

9 h

Identification colour

Blue

Voltage according to EN 60309-2

230 V (50+60 Hz) blue

HS Code

8536.69

• EAN 3303432009700
• SAP 1200197947
• Code 82140021
