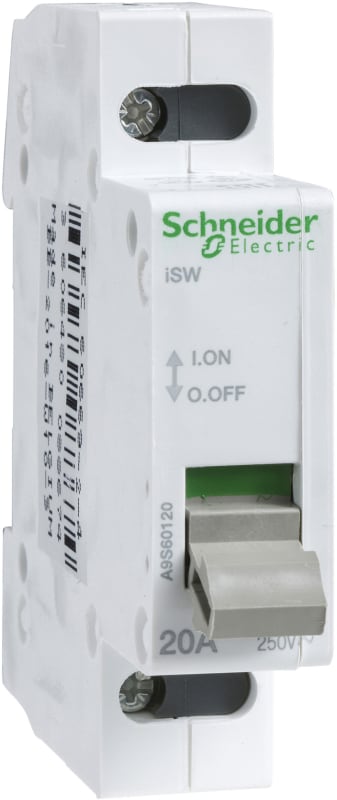

Schneider Electric ACTI9 - iSW switch - 1 pole - 20 A - 250V A9S60120
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9S60120 Load-break switch iSW 1P 20A 250V.
Technical Specifications
- Manufacturer part number (MPN)
- A9S60120
- EAN / GTIN
- 3606480088674
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 250 V
- Rated current
- 20 A
- Number of poles
- 1P
- Range
- Acti9
- Product name
- Acti9 iSW
- Product or component type
- Switch disconnector
- Device short name
- iSW
- Device application
- Control
- Poles description
- 1P
- Utilisation category
- AC-22A
- Suitability for isolation
- Yes
- [Ie] rated operational current
- 20 A at 250 V AC 50/60 Hz
- [Ue] rated operational voltage
- 250 V AC 50/60 Hz
- [Ui] rated insulation voltage
- 250 V AC 50/60 Hz conforming to EN/IEC 60669-2-4
- [Uimp] rated impulse withstand voltage
- 4 kV
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- Contact position indicator
- Yes
- mounting mode
- Fixed
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 77 mm
- Width
- 18 mm
- Depth
- 70 mm
- Colour
- Grey
- Mechanical durability
- 300000 cycles
- Electrical durability
- 30000 cycles
- Connections - terminals
- Tunnel type terminals - 10 mm² - rigid; Tunnel type terminals - 10 mm² - flexible; Tunnel type terminals - 10 mm² - flexible with ferrule
- Wire stripping length
- 9 mm
- Tightening torque
- 1.2 N.m
- Standards
- EN/IEC 60669-2-4
- IP degree of protection
- IP4
- Pollution degree
- 2
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Country of origin
- BE
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480088674
- SAP 1000325952
- Code 8873970
Product Documentation
