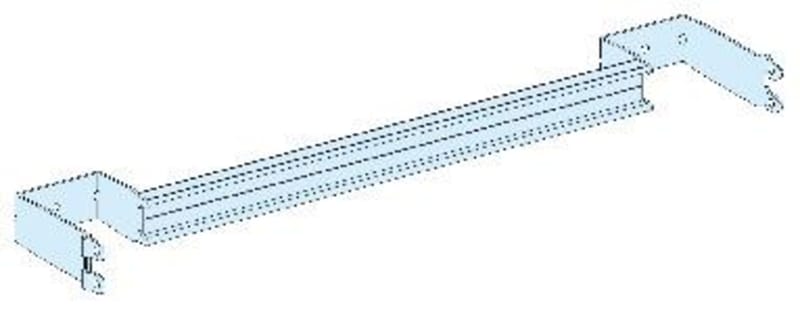

Mounting Rail for Modular Products, PrismaSeT P

DIN mounting rail for modular products in PrismaSeT P – for 650 mm field.

Manufacturer part number (MPN)

LVS03401

EAN / GTIN

3606481875563

Sales unit

pcs

Package quantity

12 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P

Type of rail

Modular

Installed device

Acti 9: fixed C120 without earth leakage protection - control: toggle; TeSys: fixed GV2LE; TeSys: fixed GV2ME; TeSys: fixed GV2RTn; Acti 9: fixed iC120 without earth leakage protection - control: toggle; Vigilohm: IM20; Vigilohm: IM20H; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device; Multi9: fixed modular device; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; Vigirex: RH10; Vigirex: RH21; Vigirex: RH99; Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Multi9: fixed NG125 with earth leakage protection - control: toggle; Acti 9: fixed 1/2 or 1 module lamp - horizontal installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A; Vigilohm: IM10; Vigilohm: IM10H; Vigilohm: IM9; Vigilohm: IM9-OL; Acti 9: measurement device; Multi9: measurement device; Vigirex: RH197M

Poles description

1 x 3P: fixed C120; 1 x 4P: fixed C120; 9 x 3P: fixed GV2LE; 9 x 3P: fixed GV2ME; 9 x 3P: fixed GV2RTn; 1 x 3P: fixed iC120; 1 x 4P: fixed iC120; 1 x 3P: fixed INS100 vertical installation; 1 x 4P: fixed INS100 vertical installation; 1 x 3P: fixed INS160 vertical installation; 1 x 4P: fixed INS160 vertical installation; 1 x 3P: fixed INS40 vertical installation; 1 x 4P: fixed INS40 vertical installation; 1 x 3P: fixed INS63 vertical installation; 1 x 4P: fixed INS63 vertical installation; 1 x 3P: fixed NG125; 1 x 4P: fixed NG125; 1 x 3P: fixed NG125 NA; 1 x 4P: fixed NG125 NA; 1 x 3P: fixed INS125 vertical installation; 1 x 4P: fixed INS125 vertical installation

installation description

Cubicle - width 650 mm depth 400 mm

Enclosure nominal height

2000 mm

Number of vertical modules [50 mm]

2 module(s): 1/2 or 1 module lamp, direct in 650 mm Widecubicle; 5 module(s): C120 without earth leakage protection , direct in 650 mm Widecubicle; 3 module(s): GV2LE, direct in 650 mm Widecubicle; 3 module(s): GV2ME, direct in 650 mm Widecubicle; 3 module(s): GV2RTn, direct in 650 mm Widecubicle; 5 module(s): iC120 without earth leakage protection , direct in 650 mm Widecubicle; 4 module(s): IM10 in 650 mm Widecubicle; 4 module(s): IM10H in 650 mm Widecubicle; 4 module(s): IM20 in 650 mm Widecubicle; 4 module(s): IM20H in 650 mm Widecubicle; 3 module(s): IM9 in 650 mm Widecubicle; 3 module(s): IM9-OL in 650 mm Widecubicle; 4 module(s): INS100, direct in 650 mm Widecubicle; 5 module(s): INS100, direct in 650 mm Widecubicle; 4 module(s): INS125, direct in 650 mm Widecubicle; 5 module(s): INS125, direct in 650 mm Widecubicle; 4 module(s): INS160, direct in 650 mm Widecubicle; 5 module(s): INS160, direct in 650 mm Widecubicle; 4 module(s): INS40, direct in 650 mm Widecubicle; 4 module(s): INS63, direct in 650 mm Widecubicle; 3 module(s): measurement device in 650 mm Widecubicle; 3 module(s): modular device <= 40 A, direct in 650 mm Widecubicle; 8 module(s): modular device <= 40 A, direct in 650 mm Widecubicle; 4 module(s): modular device, direct in 650 mm Widecubicle; 5 module(s): NG125 without earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NG125 NA, direct in 650 mm Widecubicle; 3 module(s): RH10 in 650 mm Widecubicle; 3 module(s): RH197M in 650 mm Widecubicle; 3 module(s): RH21 in 650 mm Widecubicle; 3 module(s): RH99 in 650 mm Widecubicle; 5 module(s): C120 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): iC120 with earth leakage protection , direct in 650 mm Widecubicle; 5 module(s): NG125 with earth leakage protection , direct in 650 mm Widecubicle

9 mm pitches

48

Quantity per set

Set of 1

Height

43 mm

Width

592 mm

Depth

126 mm

Product weight

0.5 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.300 cm

Package 1 Width

12.800 cm

Package 1 Length

60.500 cm

Package 1 Weight

504.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

14.800 cm

Package 2 Width

27.600 cm

Package 2 Length

62.700 cm

Package 2 Weight

6.370 kg

Unit Type of Package 3

P12

Number of Units in Package 3

240

Package 3 Height

67.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

139.400 kg

Country of origin

IT

Warranty (in months)

18

• EAN 3606481875563
• SAP 1200546664
• Code 82879610
