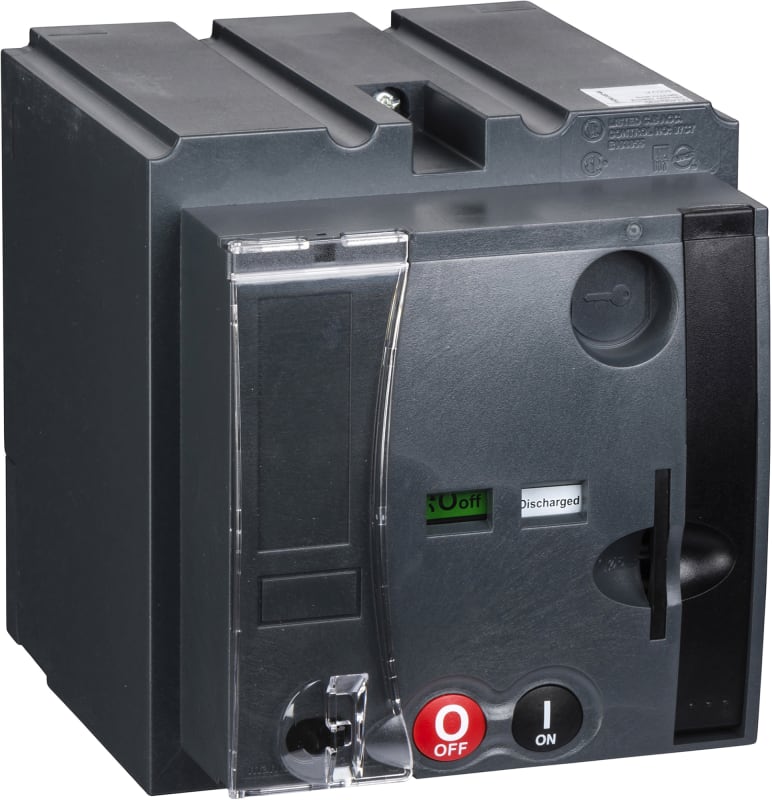

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz LV432641

Schneider Electric LV432641 Motor mechanism 220-240VAC NSX400/630.

Manufacturer part number (MPN)

LV432641

EAN / GTIN

3606480020179

Sales unit

pcs

Package quantity

6 pcs

Voltage

220-240 V AC

Device short name

MT400/630

Product or component type

Motor mechanism

Device application

Automatic spring charging

Range compatibility

ComPacT NSX400; ComPacT NSX630; ComPacT NSX400 DC; ComPacT NSX630 DC

Control type

Standard

[Uc] control circuit voltage

208...277 V AC 60 Hz; 220...240 V AC 50/60 Hz

circuit breaker mounting mode

Fixed

circuit breaker frame rated current

400 A; 630 A

Control signal type

Impulse; Maintained

circuit breaker response time

< 700 ms open; < 80 ms closed

Maximum operating frequency

4 per minute

Maximum power consumption in VA

500 VA closing; 500 VA opening

Locking options description

Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

24

Country of origin

IT

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

220–240 V

Rated control supply voltage AC 60 Hz

208–277 V

Type of switch drive

Motor drive

Voltage type for actuating

AC

HS Code

8501.20

• EAN 3606480020179
• SAP 1000092798
• Code 8861062
