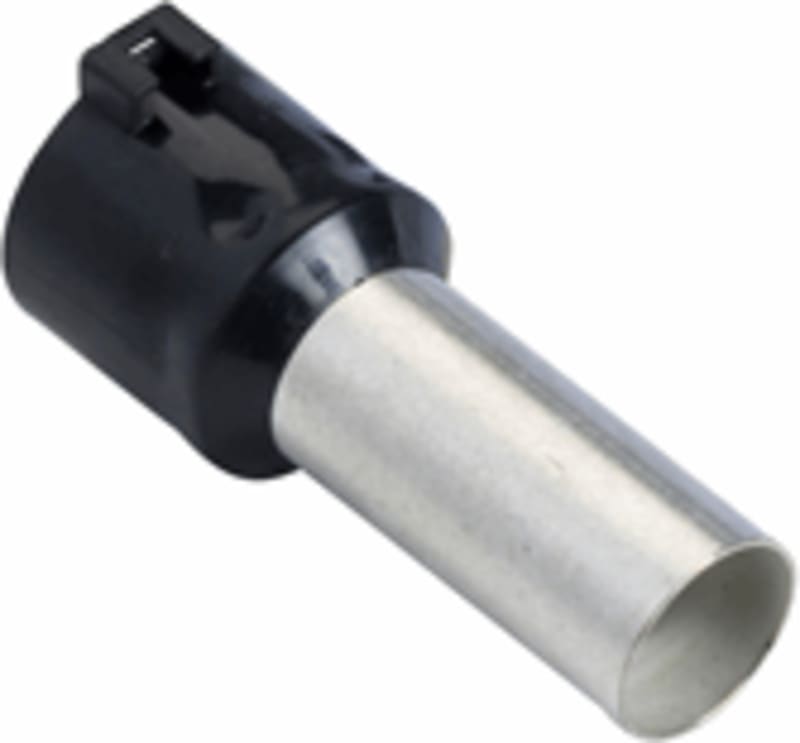

End Ferrule 25mm², with plastic collar
Pricing
Request a quote
We reply within 24 hours
Product Description
End ferrule, 25 mm², with plastic collar.
Technical Specifications
- Manufacturer part number (MPN)
- DZ5CA253
- EAN / GTIN
- 3389110535716
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Conductor cross-section
- 25 mm²
- Range of product
- Linergy
- Product or component type
- Cable end
- Cable end size
- Medium
- Standards
- NF C 63-023
- Type of packing
- Bag
- Quantity per set
- Set of 100
- Cable cross section
- 25 mm²
- Cable end type
- Single conductor
- Additional information
- For additional marker tag holder
- Colour
- Black
- Bezel material
- Halogen-free plastic
- Tube material
- Copper conforming to ISO 1337
- Number of cables
- 1
- AWG gauge
- 4 AWG
- Bezel size
- Ø 12 mm
- Tube diameter
- 7.7 mm
- Length
- 36 mm
- Tube length
- 22 mm
- CAD overall depth
- 36 mm
- Product weight
- 0.156 kg
- Ambient air temperature for operation
- -20…105 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Number of Units in Package 3
- 7000
- Country of origin
- DE
- Warranty (in months)
- 18
- Sleeve length
- 22 mm
- Insulated
- Yes
- Halogen free
- Yes
- Surface protection
- Tinned
- Total length
- 36 mm
- Construction type
- Standard
- Nominal cross section
- 25 mm²
- For cables resistant to short circuit
- No
- Reel/roll packaging
- No
- Material
- Copper
- With identification flag
- Yes
- Material insulation
- Polyamide (PA)
- AWG size
- 4
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110535716
- SAP 1000043386
- Code 8772042
