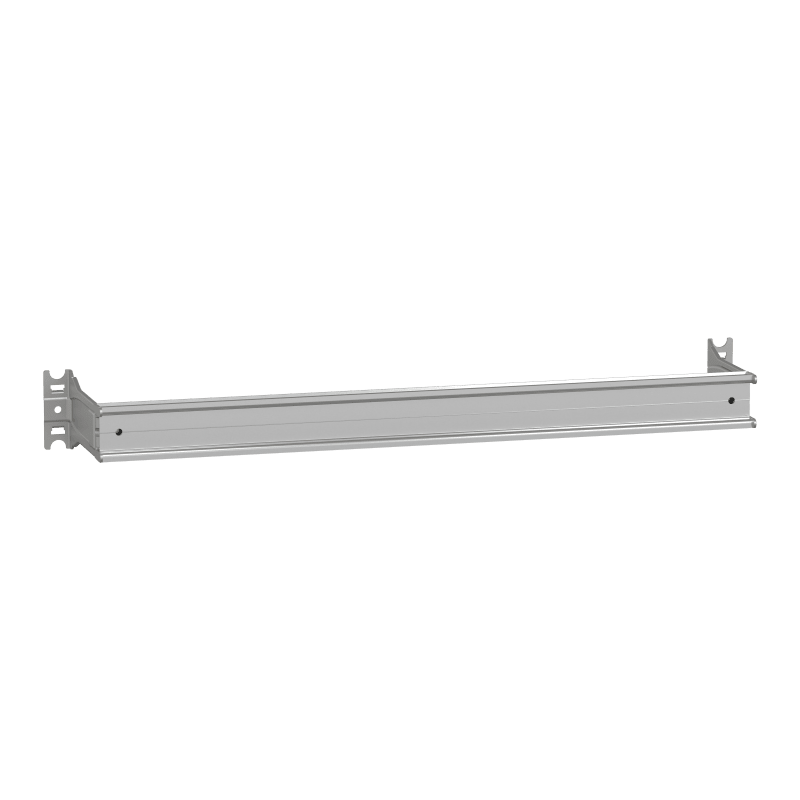

DIN rail PrismaSeT G B600MM

Schneider Electric LVS03001 — W600 MODULAR DEVICE RAIL PRISMA G.

Manufacturer part number (MPN)

LVS03001

EAN / GTIN

3606481875419

Sales unit

pcs

Package quantity

25 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G; PrismaSeT Prisma Pack 250

Type of rail

Modular

Installed device

Acti 9: fixed C120 without earth leakage protection - control: toggle; TeSys: fixed GV2LE; TeSys: fixed GV2ME; TeSys: fixed GV2RTn; Acti 9: fixed iC120 without earth leakage protection - control: toggle; Vigilohm: IM20; Vigilohm: IM20H; Vigilohm: fixed IM9; Vigilohm: fixed IM9-OL; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device; Multi9: fixed modular device; Multi9: fixed NG125 without earth leakage protection - control: toggle; Multi9: fixed NG125 NA - control: toggle; Vigirex: RH10; Vigirex: RH21; Vigirex: RH99; Acti 9: fixed C120 with earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; Multi9: fixed NG125 with earth leakage protection - control: toggle; Acti 9: fixed 1/2 or 1 module lamp - horizontal installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; Acti 9: fixed measurement device - horizontal installation; Multi9: fixed measurement device - horizontal installation; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A

Poles description

1 x 3P: fixed C120; 1 x 4P: fixed C120; 9 x 3P: fixed GV2LE; 9 x 3P: fixed GV2ME; 9 x 3P: fixed GV2RTn; 1 x 3P: fixed iC120; 1 x 4P: fixed iC120; 1 x 3P: fixed INS100 vertical installation; 1 x 4P: fixed INS100 vertical installation; 1 x 3P: fixed INS160 vertical installation; 1 x 4P: fixed INS160 vertical installation; 1 x 3P: fixed INS40 vertical installation; 1 x 4P: fixed INS40 vertical installation; 1 x 3P: fixed INS63 vertical installation; 1 x 4P: fixed INS63 vertical installation; 1 x 3P: fixed NG125; 1 x 4P: fixed NG125; 1 x 3P: fixed NG125 NA; 1 x 4P: fixed NG125 NA; 1 x 3P: fixed INS125 vertical installation; 1 x 4P: fixed INS125 vertical installation

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Pack enclosure - width 600 mm

Number of vertical modules [50 mm]

2 module(s): 1/2 or 1 module lamp, direct in 600 mm Widefloor-standing enclosure; 2 module(s): 1/2 or 1 module lamp, direct in 600 mm Widewall-mounted enclosure; 5 module(s): C120 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): C120 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 3 module(s): GV2LE, direct in 600 mm Widefloor-standing enclosure; 3 module(s): GV2LE, direct in 600 mm Widewall-mounted enclosure; 3 module(s): GV2ME, direct in 600 mm Widefloor-standing enclosure; 3 module(s): GV2ME, direct in 600 mm Widewall-mounted enclosure; 3 module(s): GV2RTn, direct in 600 mm Widefloor-standing enclosure; 3 module(s): GV2RTn, direct in 600 mm Widewall-mounted enclosure; 5 module(s): iC120 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): iC120 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 3 module(s): IM20 in 600 mm Widefloor-standing enclosure; 3 module(s): IM20 in 600 mm Widewall-mounted enclosure; 3 module(s): IM20H in 600 mm Widefloor-standing enclosure; 3 module(s): IM20H in 600 mm Widewall-mounted enclosure; 3 module(s): IM9 in 600 mm Widefloor-standing enclosure; 3 module(s): IM9 in 600 mm Widewall-mounted enclosure; 3 module(s): IM9-OL in 600 mm Widefloor-standing enclosure; 3 module(s): IM9-OL in 600 mm Widewall-mounted enclosure; 4 module(s): INS100, direct in 600 mm Widefloor-standing enclosure; 4 module(s): INS100, direct in 600 mm Widewall-mounted enclosure; 5 module(s): INS100, direct in 600 mm Widefloor-standing enclosure; 5 module(s): INS100, direct in 600 mm Widewall-mounted enclosure; 4 module(s): INS125, direct in 600 mm Widefloor-standing enclosure; 4 module(s): INS125, direct in 600 mm Widewall-mounted enclosure; 5 module(s): INS125, direct in 600 mm Widefloor-standing enclosure; 5 module(s): INS125, direct in 600 mm Widewall-mounted enclosure; 4 module(s): INS160, direct in 600 mm Widefloor-standing enclosure; 4 module(s): INS160, direct in 600 mm Widewall-mounted enclosure; 5 module(s): INS160, direct in 600 mm Widefloor-standing enclosure; 5 module(s): INS160, direct in 600 mm Widewall-mounted enclosure; 4 module(s): INS40, direct in 600 mm Widefloor-standing enclosure; 4 module(s): INS40, direct in 600 mm Widewall-mounted enclosure; 4 module(s): INS63, direct in 600 mm Widefloor-standing enclosure; 4 module(s): INS63, direct in 600 mm Widewall-mounted enclosure; 2 module(s): measurement device, direct in 600 mm Widefloor-standing enclosure; 2 module(s): measurement device, direct in 600 mm Widewall-mounted enclosure; 2 module(s): measurement device, direct in 600 mm WidePack enclosure; 3 module(s): modular device <= 40 A, direct in 600 mm Widefloor-standing enclosure; 3 module(s): modular device <= 40 A, direct in 600 mm Widewall-mounted enclosure; 8 module(s): modular device <= 40 A, direct in 600 mm Widefloor-standing enclosure; 8 module(s): modular device <= 40 A, direct in 600 mm Widewall-mounted enclosure; 6 module(s): modular device <= 40 A, direct in 600 mm WidePack enclosure; 6 module(s): modular device, direct in 600 mm WidePack enclosure; 4 module(s): modular device, direct in 600 mm Widefloor-standing enclosure; 4 module(s): modular device, direct in 600 mm Widewall-mounted enclosure; 5 module(s): NG125 without earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG125 without earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 5 module(s): NG125 NA, direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG125 NA, direct in 600 mm Widewall-mounted enclosure; 3 module(s): RH10, direct in 600 mm Widefloor-standing enclosure; 3 module(s): RH10, direct in 600 mm Widewall-mounted enclosure; 3 module(s): RH21, direct in 600 mm Widefloor-standing enclosure; 3 module(s): RH21, direct in 600 mm Widewall-mounted enclosure; 3 module(s): RH99, direct in 600 mm Widefloor-standing enclosure; 3 module(s): RH99, direct in 600 mm Widewall-mounted enclosure; 5 module(s): C120 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): C120 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 5 module(s): iC120 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): iC120 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure; 5 module(s): NG125 with earth leakage protection , direct in 600 mm Widefloor-standing enclosure; 5 module(s): NG125 with earth leakage protection , direct in 600 mm Widewall-mounted enclosure

9 mm pitches

48

Quantity per set

Set of 1

Height

52 mm

Width

468 mm

Depth

100 mm

Product weight

0.24 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.200 cm

Package 1 Width

10.500 cm

Package 1 Length

47.000 cm

Package 1 Weight

236.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

25

Package 2 Height

14.000 cm

Package 2 Width

48.000 cm

Package 2 Length

50.000 cm

Package 2 Weight

6.484 kg

Unit Type of Package 3

P12

Number of Units in Package 3

300

Package 3 Height

62.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

89.810 kg

Country of origin

IT

Warranty (in months)

18

• EAN 3606481875419
• SAP 1200546859
• Code 82879896
