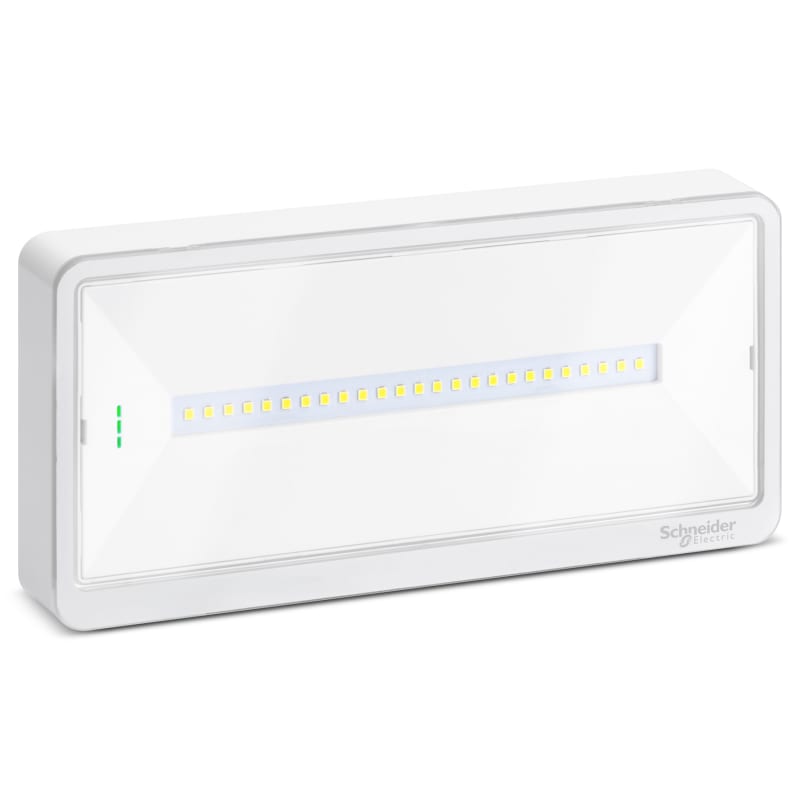

Schneider Electric Emergency luminaire, Exiway Light, Activa, selectable duration, 250LM, IP65, white OVA44113

Schneider Electric OVA44113 Exiway Light emergency lighting Activa, autotest, 250lm, 1-3 t, M/NM, IP65, LiFePO4.

Manufacturer part number (MPN)

OVA44113

EAN / GTIN

3606481918147

Sales unit

pcs

Package quantity

18 pcs

IP rating

IP65

Range

Exiway

Product name

Exiway Light

Product or component type

Emergency luminaire

Device application

Anti-panic lighting

Function

Self-test

Operational mode

Maintained; Non-maintained

Number of batteries

1 x 3.2 V 1.5 Ah LiFePO4

Colour tint

White

Light source

9 x LED 0.3 W

Visibility distance

20 m

Light source colour

Neutral

Wiring device additional information

3 wires connection

Device mounting

Surface

Mounting support

Wall; Ceiling

[Ue] rated operational voltage

230 V AC 50/60 Hz

Power consumption in VA

4.7 VA non-maintained; 7.9 VA maintained

Power consumption in W

0.29 W non-maintained; 3.6 W maintained

Electrical insulation class

Class II

LED lifespan

100000 h

Test function

Automatic periodical functional & duration test

Autonomy

1 h; 1.5 h; 2 h; 3 h

Charging time

12 h

Luminous flux

Emergency condition: 250 lm for 1 h; Emergency condition: 200 lm for 1.5 h; Emergency condition: 150 lm for 2 h; Emergency condition: 120 lm for 3 h; Maintained mode: 150 lm

Local signalling

LED

Material

Polycarbonate self-extinguishing

Height

112 mm

Depth

32 mm

Width

229 mm

Product weight

0.38 kg

IP degree of protection

IP65

IK degree of protection

IK09

fire resistance

850 °C

Product certifications

CE; ENEC

Ambient air temperature for operation

0…40 °C

Standards

EN 60598-1: II; EN 60598-2-22; EN 62034; EN 62471; UL 94 V2

Number of Units in Package 1

1

Number of Units in Package 2

18

Number of Units in Package 3

18

Warranty (in months)

18

Mounting method

Wall surface mounted

Type of indicator

Single/double-sided

Monitoring equipment

Automatic self test

Wiring system

Continuous circuit/emergency circuit

Power supply system

Peripheral (individual battery)

Battery technology

Lithium-ion

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Lamp holder

None

Number of lighting heads

1

Housing material

Plastic

Housing colour

White

Material cover

Plastic, transparent

Voltage type

AC

LED nominal current at constant current

100 mA

Type of control gear

Not required

Light distributor

Reflector

Luminous flux in emergency mode

250 lm

Rated lifetime L70/B50 at 25 °C

100000 h

Rated life time L80/B10 at 25 °C

100000 h

Rated life time L90/B10 at 25 °C

100000 h

Degree of protection (IP)

IP65

Impact strength

IK09

Protection class according to IEC 61140

II

Max. system power

3.06 W

Rated luminous flux according to IEC 62722-2-1

250 lm

Luminous flux in standby mode

150 lm

Recognition distance

20 m

Height/depth

32 mm

Length

229 mm

Type of wiring

Ending

Number of poles

2

Conductor cross section

2.5 mm²

Connection type

Screw connection

Emergency power supply system

Peripheral (individual battery)

Power consumption in emergency mode

3.06 W

Emergency function monitoring system

Automatic self test

Type of lithium-ion battery

Lithium iron phosphate (LiFePO4)

Country of origin

Italy

HS Code

9405.99

• EAN 3606481918147
• SAP 1200520503
• Code 82664315
