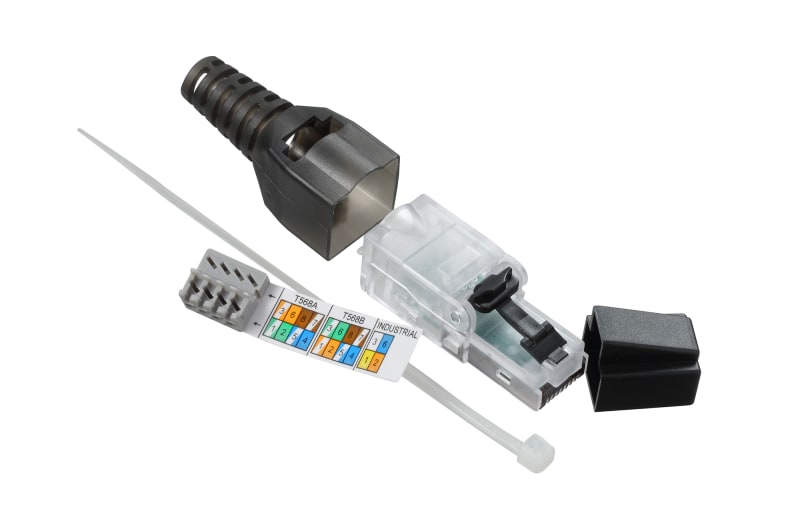

Schneider Electric Actassi - field terminal plug - Category 6 - UTP ACTPG6TLU001
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPG6TLU001 Actassi termineringsplugg RJ45, han plug Cat 6 unshielded for solid and multi-strand cable.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPG6TLU001
- EAN / GTIN
- 3606489598280
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- Actassi
- Product brand
- Schneider Electric
- product type
- Plug
- Device presentation
- Complete product
- Colour tint
- Transparent (metal and plastic)
- Wiring Colour configuration
- TIA-568A/B
- Type of packing
- Individual bag
- Quantity per set
- 1
- Connector type
- RJ45
- AWG gauge
- 26 AWG...23 AWG solid cable; 26 AWG...23 AWG stranded cable
- Tool type
- Punch down tool; Quick termination tool
- Cable outer diameter
- 6.0…9.0 mm
- compatible LAN cable types
- UTP
- Communication network category
- 6
- supported applications
- 1000BASE-T
- protocols
- EtherNet/IP
- Product compatibility
- RJ45 modular jack
- Height
- 13.8 mm
- Length
- 41.5 mm
- Width
- 14 mm
- Product weight
- 0.010 kg
- Targeted region
- North America.; Asia Pacific.; Europe
- operational temperature range
- -10…60 °C
- Ambient air temperature for storage
- -20…60 °C
- Flame retardance
- UL94-V0
- Standards
- AS/NZS 3080; ISO/IEC 11081; IEC 60603-7; ANSI/TIA/EIA-568-B
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 5
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489598280
- SAP 1200504139
- Code 82628597
Product Documentation
More from Schneider Electric
Schneider Electric

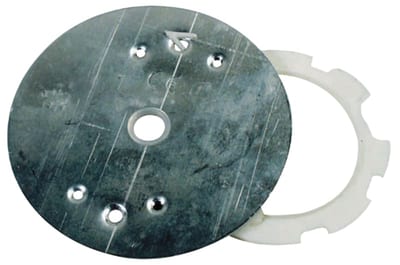

Ceiling Cover with Threads T-B
3012154
Schneider Electric

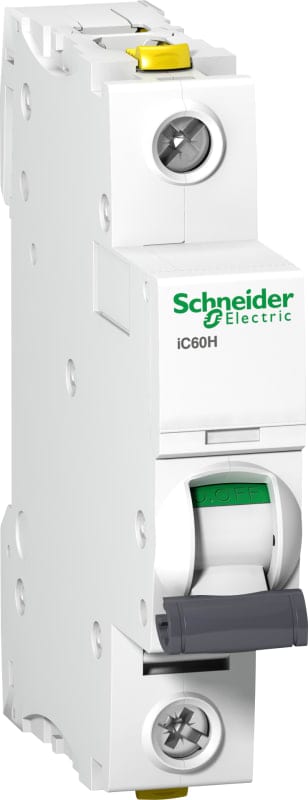

Schneider Electric A9F07110 ACTI9 IC60H Miniature Circuit Breaker 1P 10 A, Curve C
Schneider Electric

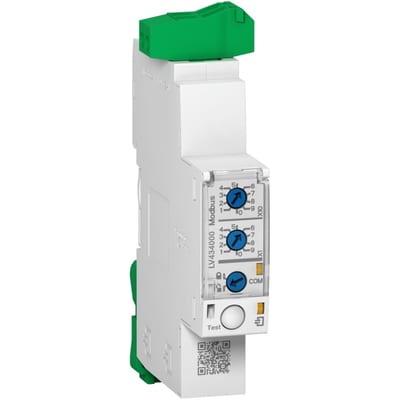

Schneider Electric IFM Modbus-SL interface module, Enerlin'X LV434000
Schneider Electric

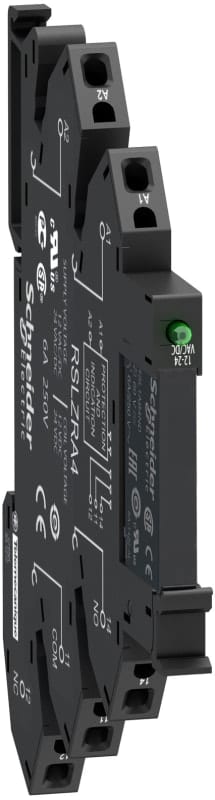

Schneider Electric Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC RSL1PRBU
Schneider Electric

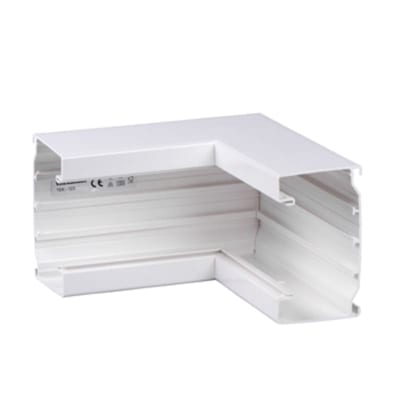

Internal corner PVC123 POLAR WHITE
5526510
Schneider Electric

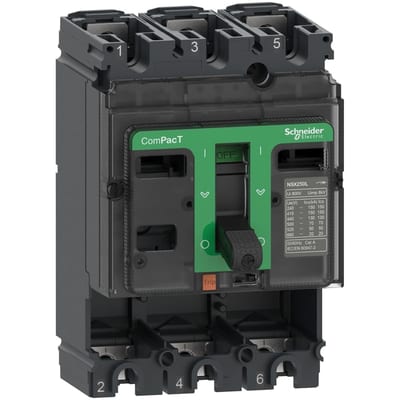

Schneider Electric Circuit breaker basic frame, ComPacT NSX250N, 50KA/415VAC, 3 poles, 250A frame rating, without trip unit C25N3
