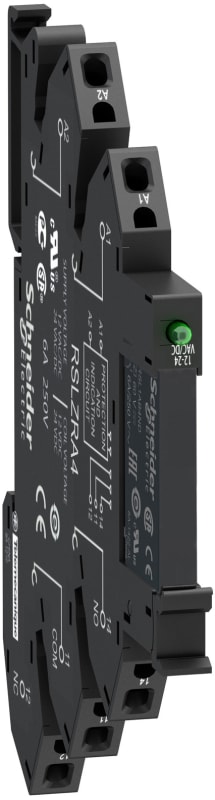

Schneider Electric Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC RSL1PRBU

Schneider Electric RSL1PRBU Relay+plinth spring 24VAC/DC.

Manufacturer part number (MPN)

RSL1PRBU EAN / GTIN: 3606480077906 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V AC Range of product: Harmony Electromechanical Relays Series name: RSL series Product or component type: Pre-assembled plug-in relay with socket Relay type: Slim interface relay Contact operation: Standard Contacts type and composition: 1 C/O status LED: With [Uc] control circuit voltage: 24 V AC/DC [Ithe] conventional enclosed thermal current: 6 A at -40…55 °C fixing mode: Plastic compression spring Average resistance: 3390 Ohm network: DC at 23 °C +/- 10 % [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC [Ie] rated operational current: 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL minimum switching current: 100 mA minimum switching voltage: 12 V [Ui] rated insulation voltage: 250 V conforming to IEC; 277 V conforming to cUL minimum switching capacity: 120 mW Maximum switching voltage: 277 V Drop-out voltage threshold: >= 0.05 Uc Load current: 6 A at 250 V AC 0.5 mm mounting distance Electrical durability: 60000 cycles for resistive load, 6 A at 250 V, AC-1 Maximum switching capacity: 1500 VA; 150 W Operating time: 5 ms reset; 12 ms Terminals description ISO n°1: (A1-A2)CO; (11-12-14)OC Average coil consumption: 0.17 W, DC Mechanical durability: 10000000 cycles Safety reliability data: B10d = 60000 Operating rate: <= 72000 cycles/hour no-load; <= 360 cycles/hour under load Control type: Without lockable test button Compatibility code: RSL Contact terminal arrangement: Separate Connections - terminals: Spring terminals, 1 x 0.2...1 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end; Spring terminals, 1 x 0.2...1 x 1.5 mm² (24 AWG...16 AWG) solid without cable end Clamping force: 10…40 N Protection category: RT III Mounting support: 35 mm symmetrical DIN rail Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Sale per indivisible quantity: 10 Contacts material: Silver alloy (AgSnO2) Shape of pin: Flat (PCB type) Width: 6.2 mm Height: 78.6 mm Depth: 101 mm Product weight: 0.029 kg Input voltage: 24 V AC/DC (input voltage limit: 21.6...28.8 V) Dielectric strength: 1000 V AC between contacts; 4000 V AC between coil and contact IP degree of protection: IP40 conforming to IEC 60529 Ambient air temperature for operation: -40…55 °C Standards: IEC 61810-1; CSA C22.2 No 14; UL 508 Product certifications: UL; CSA; GOST Marking: CE Ambient air temperature for storage: -40…85 °C Vibration resistance: 10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to IEC 60068-2-6; 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to IEC 60068-2-6 Shock resistance: 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606480077906
• SAP 1000090673
• Code 8847980
