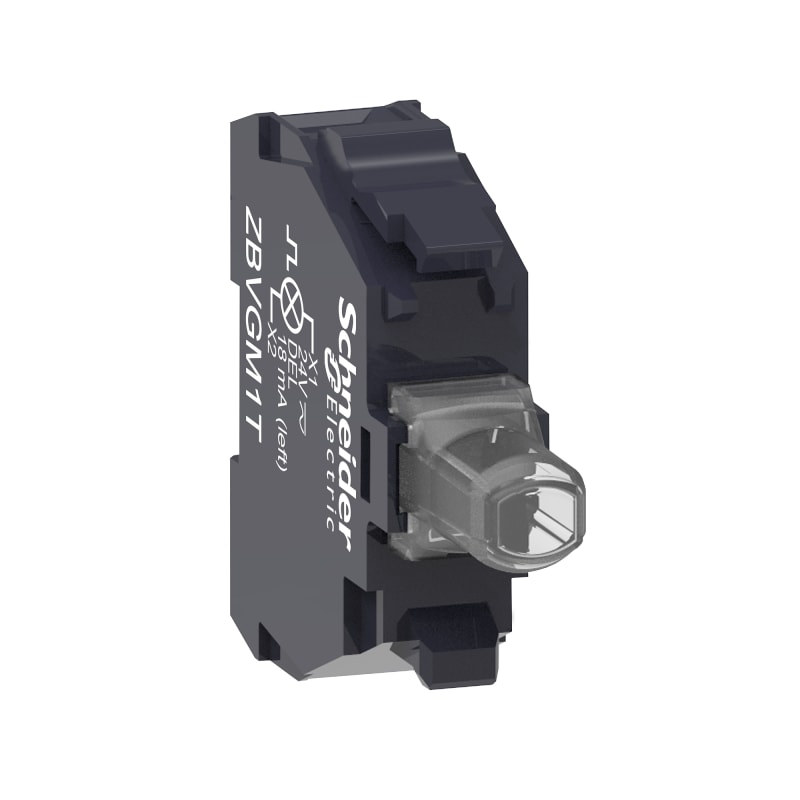

Schneider Electric Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC ZBVGM1T

Schneider Electric ZBVGM1T Light Module with robust LED in white colour and high immunitet 110-230VAC supply with screw terminals.

Manufacturer part number (MPN)

ZBVGM1T

EAN / GTIN

3606481856326

Sales unit

pcs

Package quantity

5 pcs

Voltage

110-230 V

Range of product

Harmony XB5; Harmony XB4

Product or component type

Light block

Device short name

ZBV

Sale per indivisible quantity

5

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Signalling type

Steady

Light source

Universal LED

Bulb base

Integral LED

Light block supply

Direct

Light source colour

White

[Us] rated supply voltage

110...240 V AC at 50/60 Hz

Product weight

0.017 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Supply voltage limits

93…264 V AC

Current consumption

19 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

2 kV conforming to IEC 61000-4-5

Mounting of block

Front mounting

Electrical composition code

M1; M2; M3; M4; M5; M6; M10; MF1; P1; P2; PF1

Device presentation

Basic element

Overload capacity

300 VA; 120 VA

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-1; UL 508; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; UL listed

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Electrical insulation class

Class II conforming to IEC 61140

Supply voltage

110...240 V

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

800

Country of origin

FR

Warranty (in months)

18

Colour light source

White

Lamp type

LED

Type of fastening

Front fastening

Connection type auxiliary circuit

Screw connection

Voltage type for actuating

AC

HS Code

8531.80
