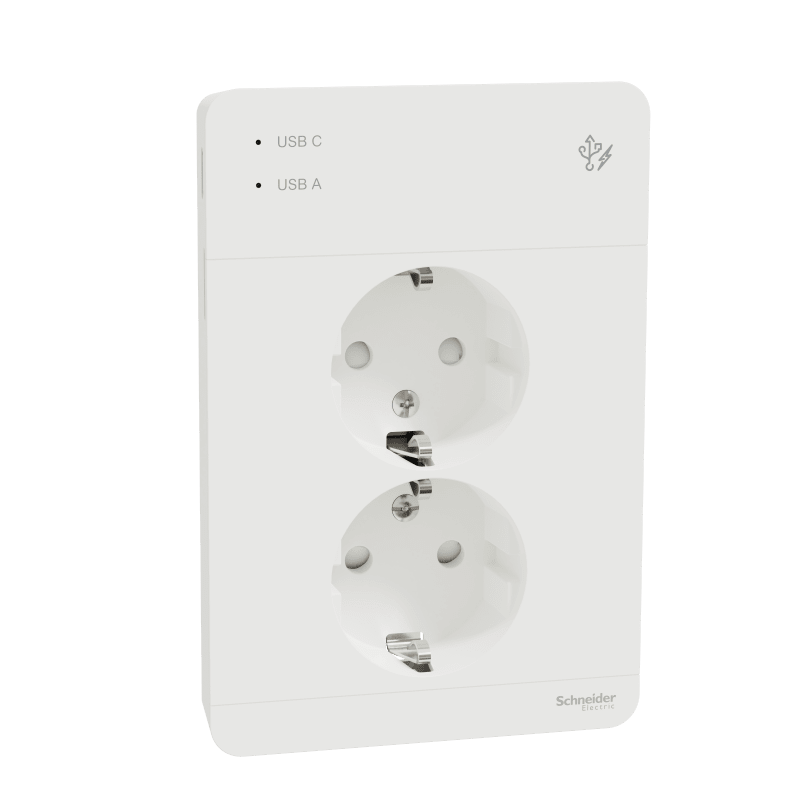

Schneider Electric WDE002195 Exxact Double Socket with Earth USB A+C White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric WDE002195 Exxact double socket outlet with earth, child protection (shuttered), USB A+C, push-in clamp terminals, flush-mounted, 16 A, IP20, white. Protective contact CEE 7/3 (type F), 250 V, halogen-free thermoplastic housing with glossy RAL 9003 finish and IK04 impact rating. Built-in USB power supply with one USB-A port, function lighting, loop-through function.
Technical Specifications
- Manufacturer part number (MPN)
- WDE002195
- EAN / GTIN
- 3606489859992
- HS code
- 8536.90
- Sales unit
- pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- With signal lamp
- Yes
- Number of socket outlets
- 2
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Number of ports USB-A
- 1
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- RAL-number (similar)
- 9003
- Impact strength
- IK04
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 85 mm
- Device height
- 134 mm
- Device depth
- 49.7 mm
- With function lighting
- Yes
- With orientation lighting
- No
- With built-in USB power supply
- Yes
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 25 mm
- Metallic colour
- No
- Type of USB power supply
- AC
- Max. current rating of USB power supply
- 3 A
- Number of ports USB-C
- 1
- Number of loop throughs
- 2
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489859992
- SAP 1200467757
- Code 82531724
Product Documentation
