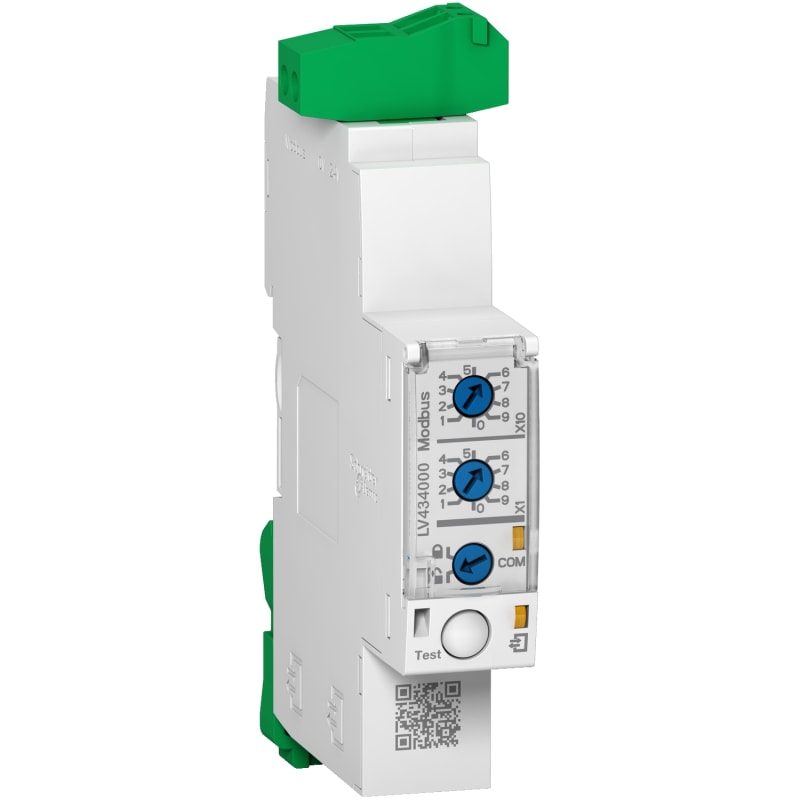

Schneider Electric IFM Modbus-SL interface module, Enerlin'X LV434000

Schneider Electric LV434000 — IFM Modbus-SL interface module, Enerlin'X.

Manufacturer part number (MPN)

LV434000

EAN / GTIN

3606481201683

Sales unit

pcs

Package quantity

54 pcs

Range of product

ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200

Device short name

IFM

Product or component type

Interface module

Range compatibility

Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R

Communication network type

Universal Logic Plug on 2-port RJ45; Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45

mounting mode

By clips

Mounting support

35 mm DIN rail

Accuracy class

Class 2 power supply

Input voltage

24 V DC - 20...10 %

Output voltage

24 V DC

Output current

3 A

Current consumption

30 mA 24 V DC room temperature

Power consumption in W

1.635 W

Memory type

EEPROM data storage

Connections - terminals

RJ45 connector; Screw type terminals

Product certifications

EAC; cULus; CE; FCC

Standards

CISPR 22; UL 61010; UL 60950; CISPR 24; CISPR 11; IEC 60950; IACS E10

Height

109 mm

Width

18 mm

Depth

73 mm

Product weight

120 g

IP degree of protection

Connectors: IP20; Other parts: IP30

Relative humidity

5…85 % at 55 °C without condensation

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-20…70 °C

Pollution degree

3

Flame retardance

V0 conforming to UL 94

Shock resistance

+/- 15 gn 11 ms conforming to EN/IEC 60068-2-27

Vibration frequency

5…8.4 Hz conforming to EN/IEC 60068-2

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

8.000 cm

Package 1 Length

11.500 cm

Package 1 Weight

117.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

54

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.772 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

With potential separation

No

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

Level c

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90

• EAN 3606481201683
• SAP 1200092069
• Code 81948044
