Ampeermeter 3 Phases 0 STILL.

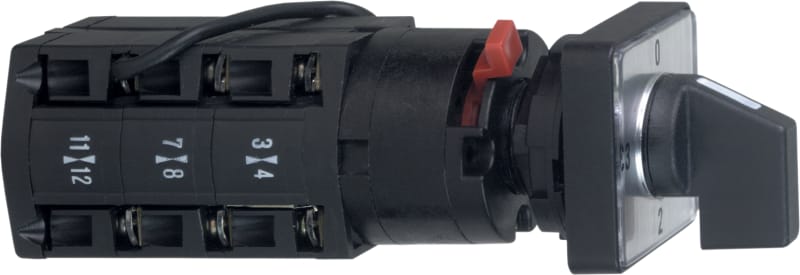

Schneider Electric K10F003MCH Cam Switch amp.3 phases 0 still.

Manufacturer part number (MPN)

K10F003MCH

EAN / GTIN

3389110076769

Sales unit

pcs

Package quantity

65 pcs

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K10

[Ith] conventional free air thermal current

10 A

Product mounting

Front mounting

fixing mode

Ø 16 or 22 mm hole

Cam switch head type

With front plate 30 x 30 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 0 - 1 - 2 - 3 black marking

Cam switch function

Ammeter switch

Return

Without

Type of measurement

For 3 circuits

Off position

With Off position

Switching positions

Right: 0° - 90° - 180° - 270°

IP degree of protection

Contact block: IP20; Operating head: IP65 conforming to IEC 60529

Switching angle

90 °

[Ui] rated insulation voltage

440 V (pollution degree 3) conforming to IEC 60947-1

Rated operational power in W

1800 W AC-23A, 220/240 V 3 phases; 370 W AC-23A, 110/120 V 1 phase; 750 W AC-23A, 220/240 V 1 phase

Rated power in hp

1 hp at 220/240 V AC, 3 phases; 0.33 hp at 110/120 V AC, 1 phase; 0.75 hp at 110/120 V AC, 3 phases; 0.75 hp at 220/240 V AC, 1 phase

[Ie] rated operational current AC

10 A at 400 V AC-1; 10 A at 400 V AC-21A; 3 A at 240 V AC-15; 6 A AC-15

[Ie] rated operational current DC

10 A at 24 V resistive load; 0.3 A at 220 V resistive load; 0.7 A at 110 V resistive load

Electrical durability

100000000 cycles

Short-circuit protection

10 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Contact operation

Slow-break

Electrical connection

Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

100 mm

Product weight

0.055 kg

Standards

CENELEC EN 50013; EN/IEC 60947-3; EN/IEC 60947-5-1

Product certifications

CULus

Protective treatment

TC

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.0 cm

Package 1 Width

4.1 cm

Package 1 Length

10.5 cm

Package 1 Weight

72.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

65

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

5.135 kg

Country of origin

AT

Warranty (in months)

18

With zero (off) position

Yes

Device construction

Front installation

Suitable for distribution board

No

With control element

Yes

Degree of protection (IP)

IP65

HS Code

8536.50

• EAN 3389110076769
• SAP 1000048380
• Code 8531178
