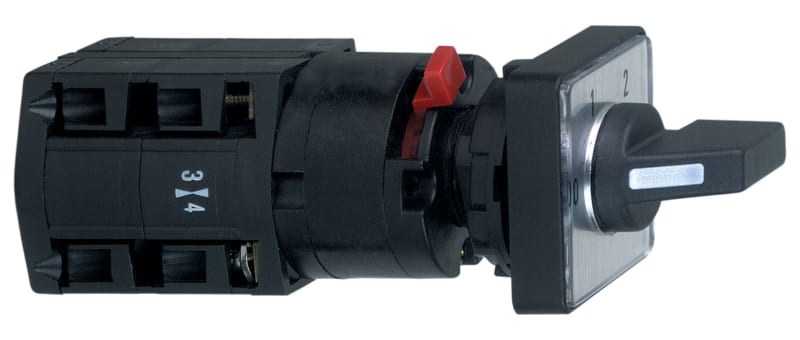

Step Switch 3 Steps + 0, 1-Pole

Schneider Electric K10C003QCH Cam Switch 3 steps + 0 1-pole.

Manufacturer part number (MPN)

K10C003QCH

EAN / GTIN

3389110076554

Sales unit

pcs

Package quantity

20 pcs

Number of poles

1P

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K10

[Ith] conventional free air thermal current

10 A

Product mounting

Front mounting

fixing mode

Ø 16 or 22 mm hole

Cam switch head type

With front plate 30 x 30 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 0 - 1 - 2 - 3 black marking

Cam switch function

Stepping switch

Return

Without

Off position

With Off position

Poles description

1P

Switching positions

Right: 270° - 315° - 0° - 45°

IP degree of protection

Contact block: IP20; Operating head: IP65 conforming to IEC 60529

Number of steps

3

Switching angle

45 °

[Ui] rated insulation voltage

440 V (pollution degree 3) conforming to IEC 60947-1

Rated operational power in W

370 W AC-23A, 110/120 V 1 phase; 750 W AC-23A, 220/240 V 1 phase

Rated power in hp

0.33 hp at 110/120 V AC, 1 phase; 0.75 hp at 220/240 V AC, 1 phase

[Ie] rated operational current AC

10 A at 400 V AC-1; 10 A at 400 V AC-21A; 3 A at 240 V AC-15; 6 A at 120 V AC-15

[Ie] rated operational current DC

10 A at 24 V resistive load; 0.3 A at 220 V resistive load; 0.7 A at 110 V resistive load

Electrical durability

100000000 cycles

Short-circuit protection

10 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Contact operation

Slow-break

Electrical connection

Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

88 mm

Product weight

0.045 kg

Standards

CENELEC EN 50013; EN/IEC 60947-3; EN/IEC 60947-5-1

Product certifications

CULus

Protective treatment

TC

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Number of Units in Package 1

1

Number of Units in Package 2

65

Country of origin

AT

Warranty (in months)

18

Model

Level switch

Rated permanent current Iu

10 A

Rated operation current Ie at AC-3, 400 V

2 A

Degree of protection (IP), front side

IP65/IP67

Type of electrical connection of main circuit

Screw connection

Type of control element

Long rotary handle

Suitable for floor mounting

No

Suitable for front mounting

Yes

HS Code

8536.50
