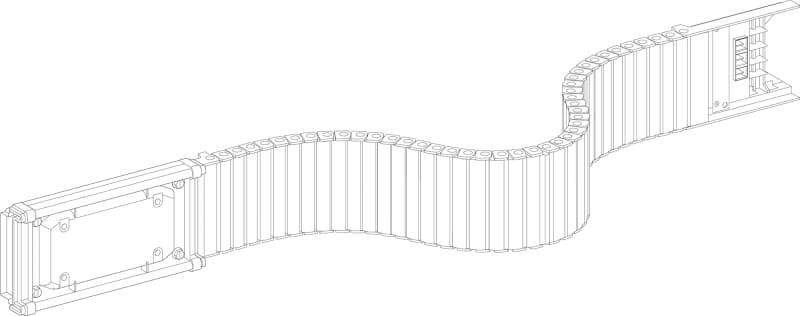

Flexible 100A 1M (KNA100DF410)

Schneider Electric KNA100DF410 FLEXIBLE 100A 1M.

Manufacturer part number (MPN)

KNA100DF410

EAN / GTIN

3606480003011

Sales unit

pcs

Rated current

100 A

Range of product

Canalis

Product name

KN

Product or component type

Flexible element

Busbar description

Flexible length

Device application

Low power distribution

Direction change type

2 dimensions

[Ie] rated operational current

100 A at 35 °C

[Ue] rated operational voltage

230...500 V

Network frequency

50/60 Hz

Number of circuits

1

Control type

Without

Colour

White (RAL 9001)

mounting mode

By screws

Thermal stress limit

1980 kA².s

Maximum radiated magnetic field

0.106 µT

[Uimp] rated impulse withstand voltage

6 kV

[Ui] rated insulation voltage

500 V

[Icw] rated short-time withstand current

1.4 kA

[Ipk] rated peak withstand current

14 kA

THDI

0…15 % 100 A; 15…33 % 80 A; 33…100 % 63 A

Length

1 m

Product weight

2.3 kg

Standards

IEC 61439-1; IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

0…35 °C without derating

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

9.200 cm

Package 1 Length

101.000 cm

Package 1 Weight

2.200 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

40

Package 2 Height

50.000 cm

Package 2 Width

62.000 cm

Package 2 Length

119.000 cm

Package 2 Weight

97.000 kg

Country of origin

FR

Warranty (in months)

18

Width

27.5 mm

Model

Single

Height

92 mm

Flexible

Yes

RAL-number

9001

Number of conductors (without earthing)

4

Number of poles

4

Degree of protection (IP)

IP55

Rated voltage AC 50 Hz

500 V

Rated current AC 50 Hz

100 A

HS Code

8536.90

• EAN 3606480003011
• SAP 1000470784
• Code 8787953
