Rittal
App.adapter CB 630A 690V o
Part number9345700EAN / GTIN4028177680005HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

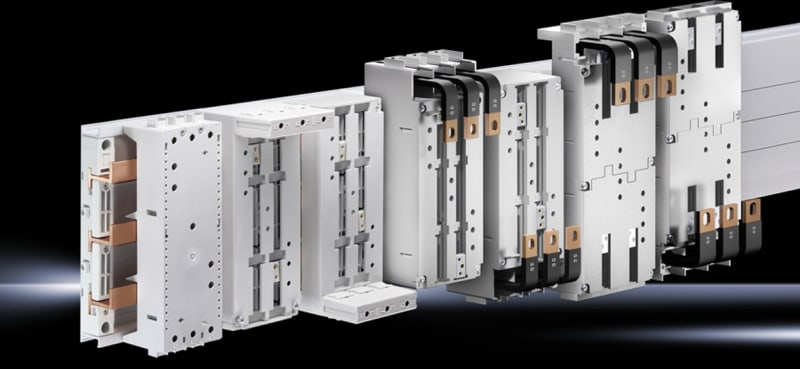

Rittal 9345700 Manufacturer description: SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet top, with connection straps. Device Adapter CB 630A 690V cable output above.
Technical Specifications
- Manufacturer part number (MPN)
- 9345700
- EAN / GTIN
- 4028177680005
- HS code
- 8544.42
- Sales unit
- pcs
- Model designation
- SV 9345.700
- Product type
- Circuit-Breaker Component
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Supply includes
- Connection straps; Sliding Blocks
- Rated operating voltage
- 690 V, 3~
- Electrical UL ratings (SCCR)
- 65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7
- Cable outlet
- Top
- For bar systems with center-to- center spacing
- 60 mm
- Number of poles
- 3-pole
- Note on Model No.
- The 9342.720 insert strip is also required when using Siemens; VL630 switchgear
- Dimensions
- Width: 140 mm; Height: 345 mm
- Suitable for busbars
- Height: 5, 10 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 3.6 kg
- Gross weight
- 3.808 kg
- Copper weight (kg per piece)
- 2.44
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177680005
- SAP 1000772955
- Code 81372202
