Rittal

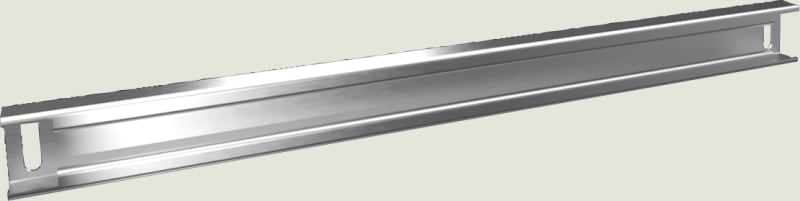

Support rail VX 45X25MM 800 2 pcs
Part number8617810EAN / GTIN4028177919525HS code9403.20
Electrical Components
DIN Rail Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617810 Support rail VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8617810
- EAN / GTIN
- 4028177919525
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 8617.810
- Product type
- Support Rail 48 x 26 mm
- Model No. Product description
- VX 8617.810
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options VX
- In enclosure width 800 mm, on the inner mounting level and in the base
- Installation options VX SE
- In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options AX
- In enclosure width 800 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
- Installation options PC
- In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options IW
- In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Packaging unit
- 2 pc(s).
- Net weight
- 3.89 kg
- Gross weight
- 4.1 kg
- PCF/VE (cradle-to-gate)
- 16.63
- Customs tariff number
- 73269098
- ETIM 9
- EC001285
- ECLASS 8.0
- 27189261
- Model
- Special profile
- Material thickness
- 1.5 mm
- Punch shape
- Long-slot
- Drill hole distance centrically
- 5 mm
- Surface finishing
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177919525
- SAP 1200107053
- Code 81963737
Product Documentation
Document preview: Rittal 8617810 — Data Sheet (OEM)
