Rittal

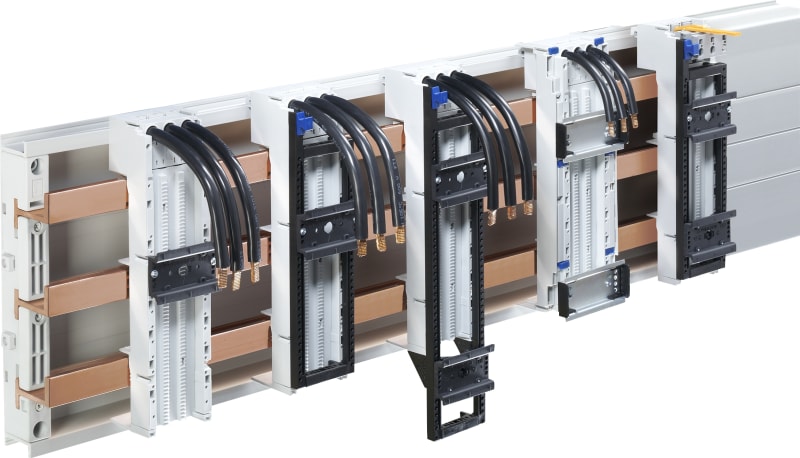

App. adapter OM 65A, AWG 6 (9340430)
Part number9340430EAN / GTIN4028177502543HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340430 Manufacturer description: SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH:; 55x208 mm, support frame, support rail TS 55E. OM-adapter 65 A with connection wires, 1 DIN sknne.
Technical Specifications
- Manufacturer part number (MPN)
- 9340430
- EAN / GTIN
- 4028177502543
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.430
- Product type
- OM adapter
- Version
- With connection cable
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Connection cables (AWG)
- AWG 6
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Length of connection cable
- 130 mm
- Support rail type
- Support frame, 1 x TS 55E
- Number of poles
- 3-pole
- Dimensions
- Width: 55 mm; Height: 208 mm
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 55 mm x 170 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.34 kg
- Gross weight
- 0.384 kg
- Copper weight (kg per piece)
- 0.116
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Mounting rail armament
- None
- Rated current In
- 65 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 55 mm
- Rail width
- 55 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502543
- SAP 1000116752
- Code 81025288
Product Documentation
Document preview: Rittal 9340430 — Data Sheet (OEM)
More from Rittal
Rittal

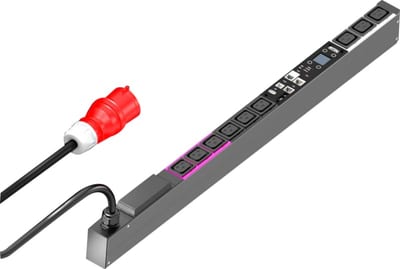

PDU switched 16A/3P 9XC19
7979330
Rittal
Shield clamp 800A RL60 4 pkg
9340000
Rittal

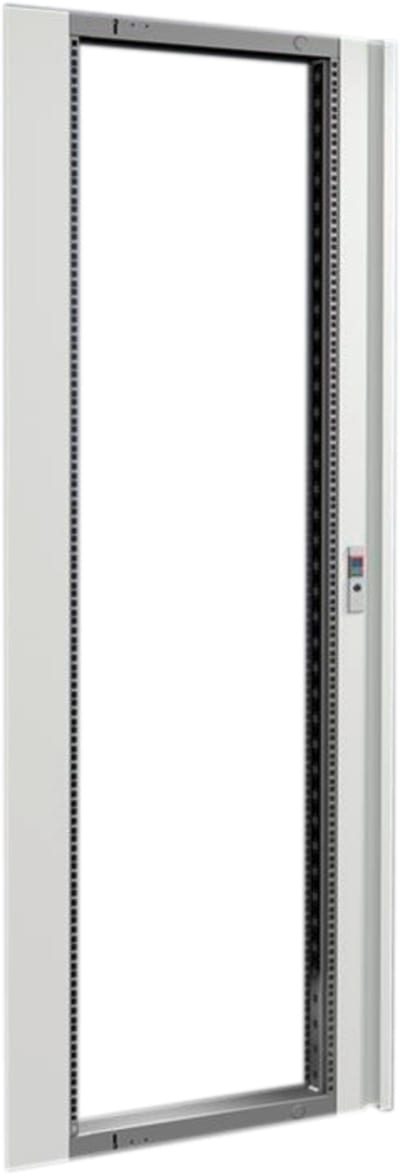

Swing frame VX, large, 40HE 800 (8619033)
Rittal

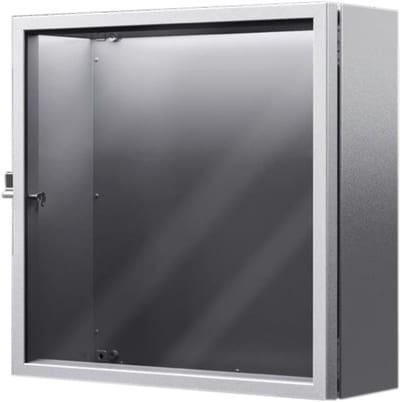

Window FT alu 597X757X62
2762010
Rittal

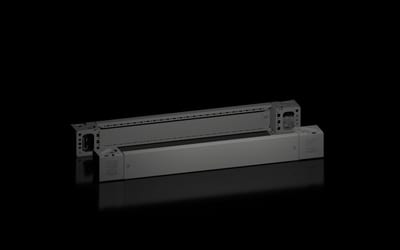

Plinth VX incl. front/rear panel 100X850
8660004
Rittal
Window FT alu 597X597X62
2761010
Rittal

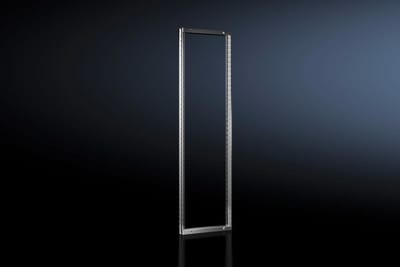

Swing frame VX, large, 40HE 600
8619013
Rittal

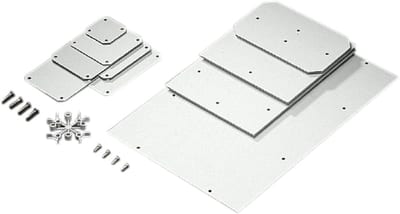

Mounting Plate M.Screws 150X150
