Rittal

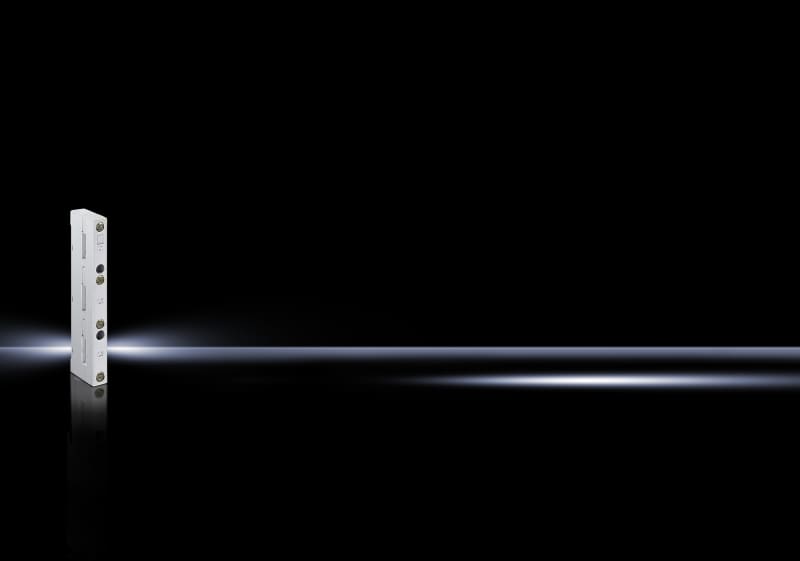

Shield clamp 800A RL60 4 pkg
Part number9340000EAN / GTIN4028177502321HS code8546.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340000 Manufacturer description: SV Busbar support, 3-pole, 60 mm bar centre distance, for busbar; WH: 12x5-30x10 mm. Busbarholder for flat copper busbars.
Technical Specifications
- Manufacturer part number (MPN)
- 9340000
- EAN / GTIN
- 4028177502321
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- SV 9340.000
- Product type
- Busbar Supports
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- RAL 7035
- Rated operating voltage
- 1000 V, 3~
- Note on Model No.
- When 12 x 5/10 mm busbars are used, spacer 9340.090 must also be used
- Number of poles
- 3-pole
- Suitable for Model No.
- 9580000
- With internal attachment
- Yes
- Center-to-center spacing of busbars
- 60 mm
- Suitable for busbars
- 12 x 5 - 30 x 10
- Packaging unit
- 4 pc(s).
- Net weight
- 0.724 kg
- Gross weight
- 0.732 kg
- Customs tariff number
- 85469010
- ETIM 9
- EC001166
- ECLASS 8.0
- 27400607
- Approvals
- ABS; DNV; Lloyds Register
- Rated current
- 800 A
- Busbar distance
- 60 mm
- Max. rated current
- 800 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8546.90
Cross References
- EAN 4028177502321
- SAP 1000113733
- Code 81059751
Product Documentation
Document preview: Rittal 9340000 — Data Sheet (OEM)
