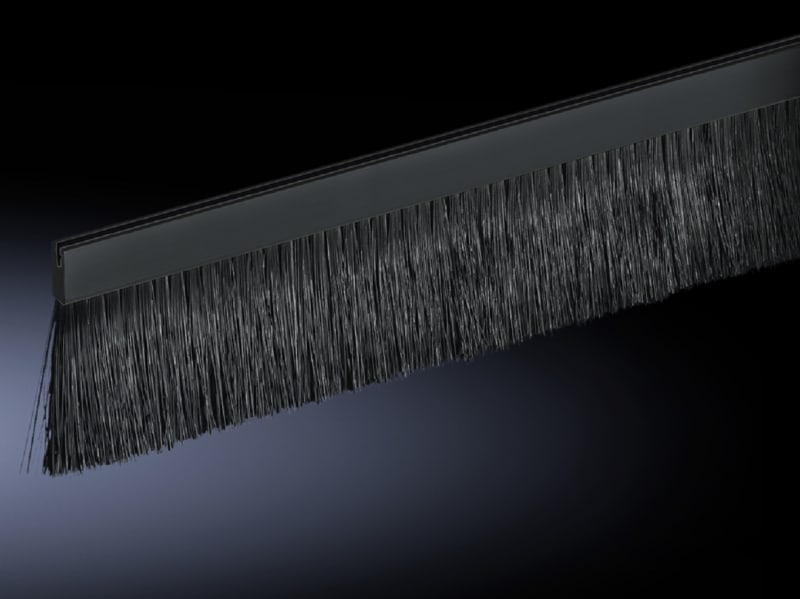

Rittal VX IT brush kit for two vertical cable ducts
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5302036 VX IT brush kit designed to combine two vertical cable ducts on both sides of the 482.6 mm (19") mounting level in enclosures up to 47 U. Supplied with vertical and horizontal brush strips, air baffle plates and assembly parts in RAL 9005. Suitable for widths up to 800 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5302036
- EAN / GTIN
- 4028177952652
- Sales unit
- pcs
- Model designation
- VX 5302.036
- Product type
- Brush kit
- Applications
- The brush kit is designed for combining two vertical cable ducts on both sides of the 482.6 mm (19") mounting level. The brush kit may be combined with a cable duct and used as an alternative to the air baffle plate.; A combination with air baffle plate and cable duct is also possible as partial installation
- Material
- Brush strip: Plastic
- UL 94-V0; Bristles
- Plastic
- UL 94-HB; Air baffle plates
- Sheet steel, spray finished
- Colour
- RAL 9005
- Supply includes
- 2 vertical brush strips, both sides; 2 horizontal air baffle plates, top and bottom; 2 horizontal brush strips, top and bottom between the first 482.6 mm (19") mounting level and the roof or gland plate; 8 brush strips between the cable duct and roof/base plate; Assembly parts
- Bristle length
- 48 mm
- Installation options
- 482.6 mm (19") mounting angles, standard in the VX IT; Dynamic 482.6 mm (19") mounting angles in the VX IT
- Assembly instruction
- When using the cable duct combined with the brush kit as an air routing component, the cable entry openings in the cable duct must be closed or covered with a cable management panel with brush strip
- To fit
- Width: = 800 mm
- Net weight
- 4.6 kg
- Gross weight
- 4.8 kg
- Customs tariff number
- 39259020
- ETIM 9
- EC012298
- ECLASS 8.0
- 27142421
- Width
- 800 mm
- Pre-stamping
- No
- Thread type
- PG
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177952652
- SAP 1200493076
- Code 82691114
Product Documentation
More from Rittal
Rittal
Floor-Standing Enclosure VX 800X1400X500
8845000
Rittal
Partition VX 2000X600
8609205
Rittal
Floor-standing cabinet VX 1200X1600X500
8265000
Rittal
PDU switch 16A/3P 18XC13+3XC19
7979335
Rittal
System chassis VX 23X64 1200
8617160
Rittal
Rekkemountingsett VX rf outer
8617503
Rittal
Swing frame VX large, 22HE 800 (8619020)
Rittal

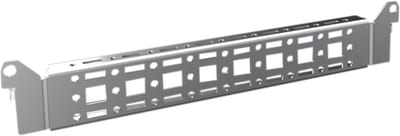

Montagestag VX 14X39 400 4/pk
