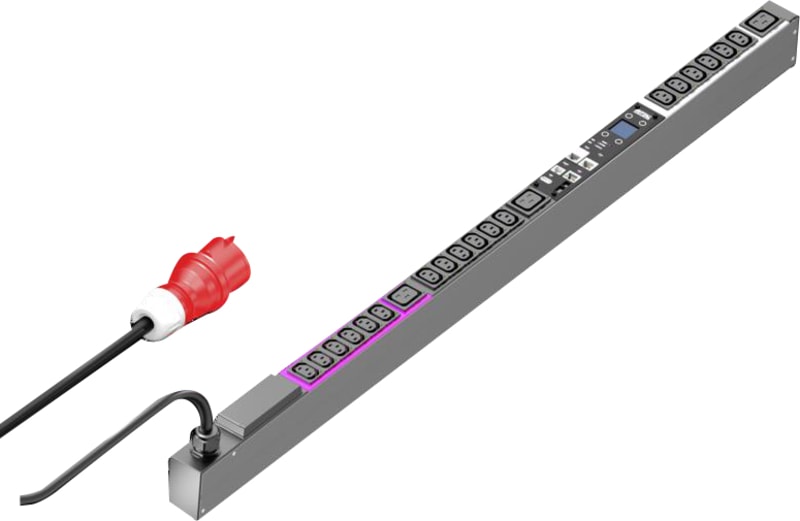

PDU switch 16A/3P 18XC13+3XC19
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7979335 Manufacturer description: DK PDU international, switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1095x70 mm, IEC; 60 320: 18x C13 + 3x C19. PDU switched 16A/3P CEE 18xC13+3xC19, DK PDU switched, Compact basic power distributor.
Technical Specifications
- Manufacturer part number (MPN)
- 7979335
- EAN / GTIN
- 4028177947979
- HS code
- 8536.90
- Sales unit
- pcs
- Model designation
- DK 7979.335
- Product type
- PDU switched
- Design
- PDU, switched
- Technical specifications
- Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Monitoring of the optionally available overvoltage protection; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Multi-colour LEDs (green/amber/red) to indicate switching states and warning/alarm limits per phase or infeed; Power LED to indicate voltage; Power-saving design, minimal intrinsic power consumption
- Material
- Aluminium section, black anodised; Slots: Plastic
- Supply includes
- Assembly parts
- Dimensions
- Width: 44 mm; Depth: 70 mm; Length: 1,095 mm
- No. of sockets and type
- 18 x C13 / 3 x C19
- Sockets
- 18 x C 13; 3 x C 19
- Rated operating voltage
- 400 V (AC)
- Power consumption
- 11 kW
- Infeeds
- Phases per infeed: 3~
- Length of connection cable
- 3m
- Type of electrical connection
- CEE
- Directives
- EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- Standards
- EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21
- Protocols
- Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)
- Operating temperature range
- 5 °C...50 °C
- Ambient humidity (non- condensing)
- 10...95 %
- Storage temperature range
- -20 °C...70 °C
- To fit
- Enclosure type: VX IT enclosure frame: ≥ 1,200 mm; Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm
- Net weight
- 4.001 kg
- Gross weight
- 4.5 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC002762
- ETIM 8
- EC002762
- ECLASS 8.0
- 27142604
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177947979
- SAP 1200542623
- Code 82801839
Product Documentation
More from Rittal
Rittal
System chassis VX 23X64 1200
8617160
Rittal
Rekkemountingsett VX rf outer
8617503
Rittal
Swing frame VX large, 22HE 800 (8619020)
Rittal
Montagestag VX 14X39 400 4/pk
8619700
Rittal

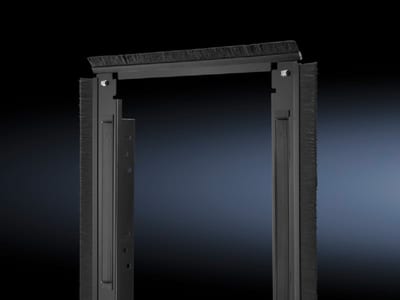

VX IT Air control plate 800X1200 std
5302011
Rittal

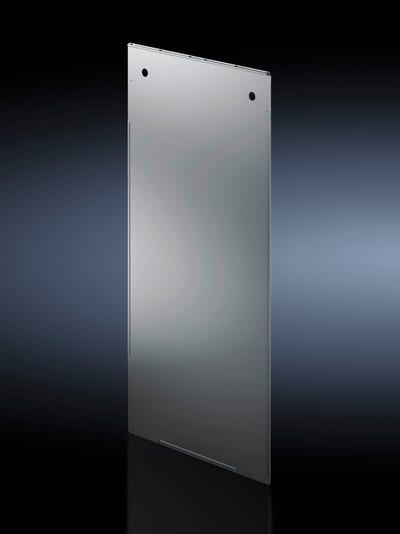

VX IT Partition plate heleinnsk HD 2200*1200
5301300
Rittal
Montagestag VX 14X39 1000 4/pk
8619750
Rittal

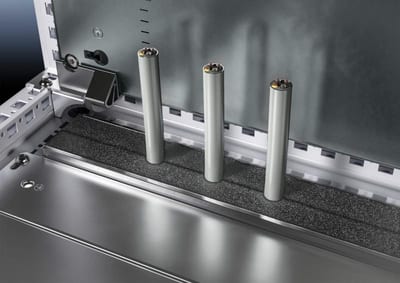

Rittal VX section for rear cable entry, width 1600 mm
8618814
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 7979335?
- 7979335 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 7979335.
- What is the HS code for 7979335?
- The customs tariff (HS) code for 7979335 is 8536.90.
- Who manufactures 7979335?
- 7979335 is a Rittal product in the Office & Onboard Equipment range.
- Is a datasheet available for 7979335?
- Yes — the 7979335 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 7979335?
- The minimum order quantity is 1.
- Is 7979335 available?
- Yes — 7979335 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
