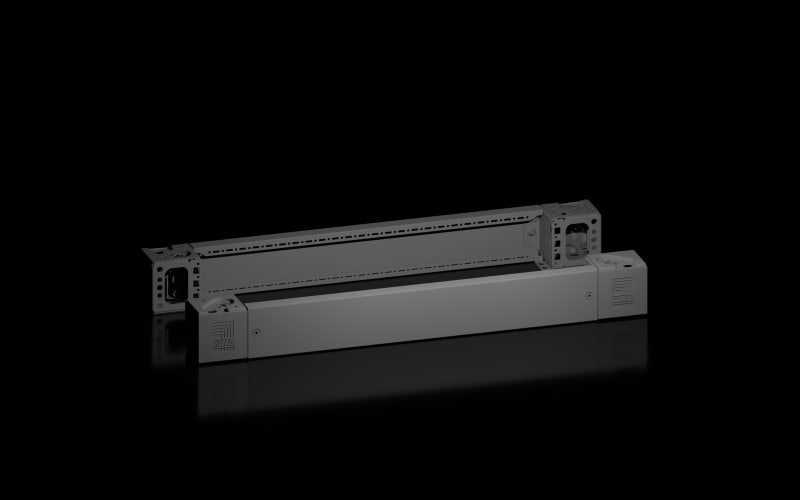

Plinth VX incl. front/rear panel 100X850
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8660004 Manufacturer description: VX base corner piece with base trim panel, front and rear, : 100 mm, for W H: 850 mm, carbon steel. VX plinth corner profile with plinth panel, front and rear, H: 100 mm, for B: 850 mm, steel plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8660004
- EAN / GTIN
- 4028177978065
- Sales unit
- set
- Package quantity
- 2 set
- Model designation
- VX 8660.004
- Material
- Base/plinth corner piece: Carbon steel; Base/plinth trim panels, front/rear: Carbon steel; Corner and baying covers: Plastic
- Color
- RAL 9005
- Supply includes
- 4 x corner covers; Assembly components; 4 x base/plinth corner pieces, 100 mm high; 2 x base/plinth trim panels, front/rear, 100 mm high
- Dimensions
- Height: 100 mm
- Type rating according to UL 50E
- Type 1; Type 12
- Weight/packaging unit
- 5.55 kg; 12.2 lb.
- Packaging unit
- 2 pc(s).
- Net weight
- 5.36 kg
- Gross weight
- 5.551 kg
- PCF/VE (cradle-to-gate)
- 20 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000721
- ETIM 8
- EC000721
- ECLASS 8.0
- 27182003
- Approvals
- UL + C-UL - FTTA
- Colour
- Black
- Width
- 850 mm
- Model
- Base front/back
- Height
- 100 mm
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 850 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177978065
- SAP 1200718175
- Code 83833434
