Phoenix Contact

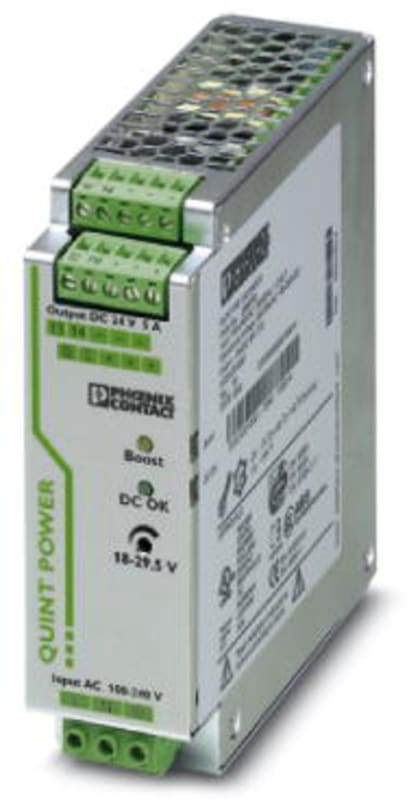

Power Supply 24VDC 5A (quint-PS/1AC/24DC/ 5)
Part numberQUINT-PS/1AC/24DC/ 5EAN / GTIN4046356113786HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/1AC/24DC/ 5 QUINT-PS/1AC/24DC/5.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/1AC/24DC/ 5
- EAN / GTIN
- 4046356113786
- Sales unit
- pcs
- Voltage
- 24 V DC
- Rated current
- 5 A
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 7.5 A
- Max. output current 2
- 7.5 A
- Max. output current 3
- 30 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 110–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 145 VA
- Power output
- 120 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 2.2
- Built-in width
- 40 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 40 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356113786
- SAP 1000235793
- Code 8160526
Product Documentation
Document preview: Power Supply 24VDC 5A (quint-PS/1AC/24DC/ 5) — Specification sheet
