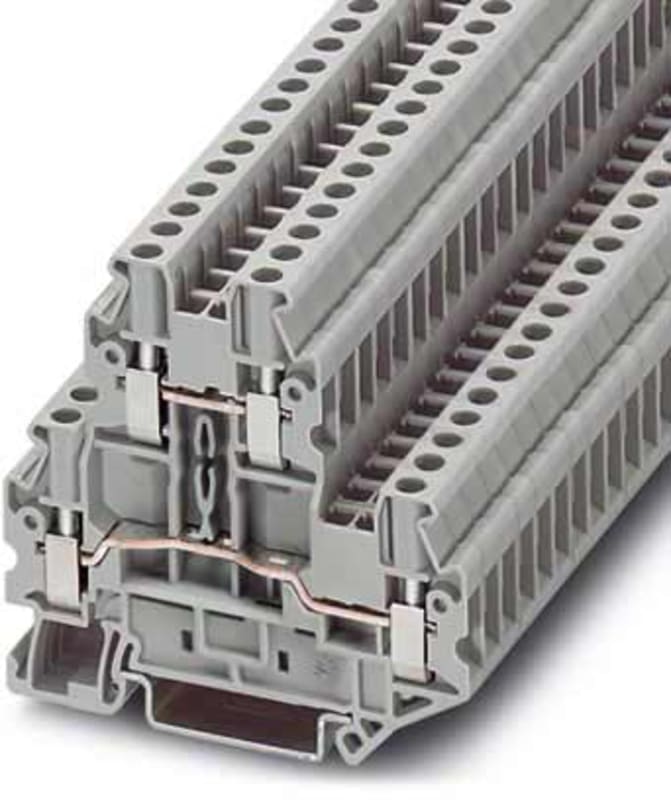

Terminal Block, screw, 2-Level, 0.14-2.5
Pricing
Request a quote
We reply within 24 hours
Overview
Phoenix Contact Terminal Block, screw, 2-Level, 0.14-2.5 (part number UTTB 2,5) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Product type: Double-Level Terminal Block; Suitable for conductor material: Aluminium/copper; Rated current In: 24 A; Rated voltage: 500 V.
Technical Specifications
- Manufacturer part number (MPN)
- UTTB 2,5
- EAN / GTIN
- 4017918997007
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Terminal Block
- Manufacturer order number
- 3044636
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 69.9 mm
- Depth
- 64.4 mm
- Length
- 69.9 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918997007
- SAP 1000083617
