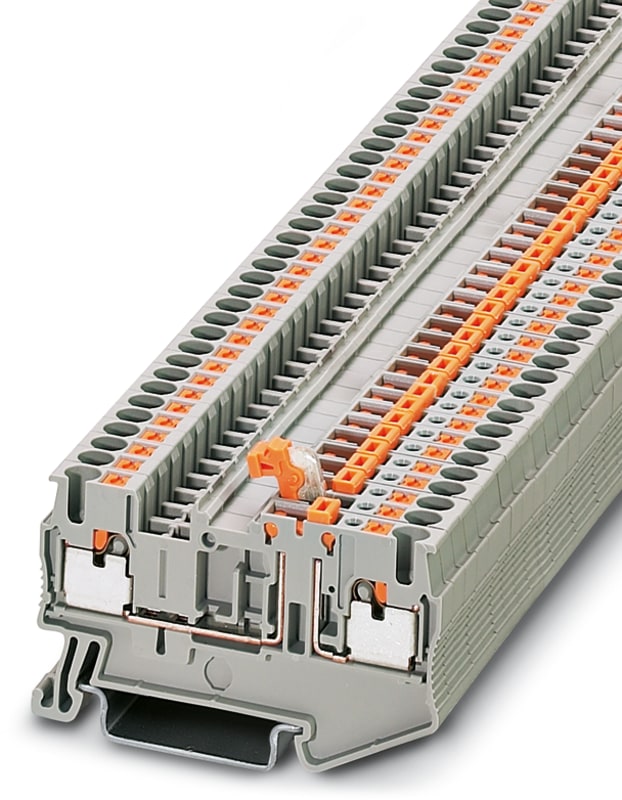

Phoenix Contact PT 2,5-MT Feed-through Terminal 0.14–2.5 mm² 20 A

Phoenix Contact PT 2,5-MT is a push-in feed-through modular terminal block with a single level and two clamp positions, rated 20 A at 400 V. The 5.2 mm-wide unit accepts conductors from 0.14 to 4 mm² solid and 0.14 to 2.5 mm² stranded on DIN top-hat rail 35 mm, and requires a closing plate to complete the assembly. Typical use is signal and control wiring in switchboards, machinery and process installations.

Manufacturer part number (MPN)

PT 2,5-MT

EAN / GTIN

4046356333597

Sales unit

pcs

Package quantity

50 pcs

Connectable conductor cross section solid-core

0.14–4 mm²

Connectable conductor cross section multi-wired

0.14–2.5 mm²

Rated current In

20 A

Rated voltage

400 V

Number of levels

1

Connection position

Atop

Number of clamp positions per level

2

Internally connected stages

Yes

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

5.2 mm

Width/grid dimension

5.2 mm

Height

62 mm

Depth

35.3 mm

Closing plate required

Yes

Colour

Grey

Type of cross disconnection

None

With integrated test socket

No

Length

62 mm

Country of origin

Poland

HS Code

8536.90

• EAN 4046356333597
• SAP 1000235607
• Code 81292439
