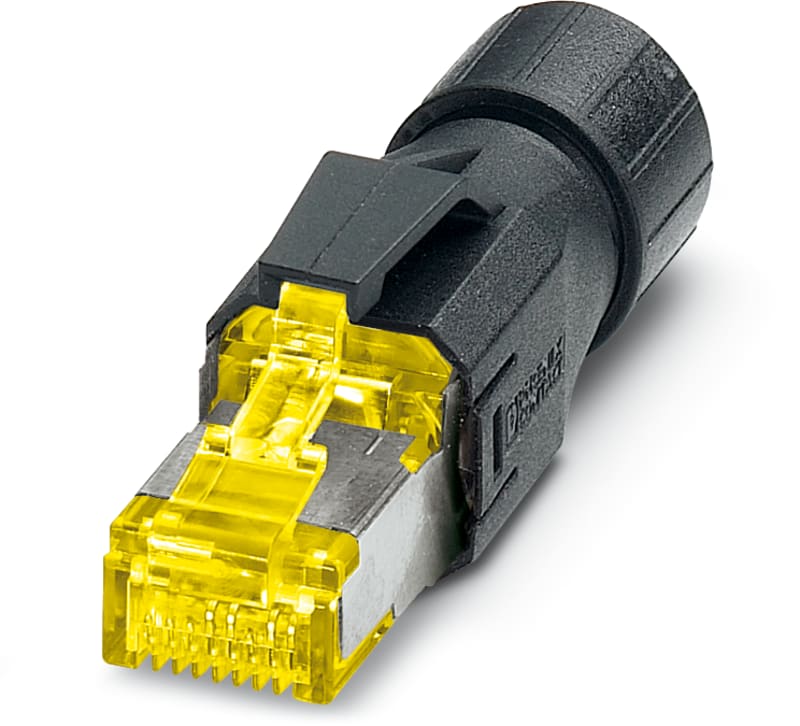

RJ45 plug connector
Pricing
Request a quote
We reply within 24 hours
Product Description
RJ45 plug connector, IP20, CAT6A, 8-pole, with QUICKON quick-connect technology, for single-strand and seven-strand conductors, AWG 26. 24.
Technical Specifications
- Manufacturer part number (MPN)
- VS-08-RJ45-10G/Q
- EAN / GTIN
- 4046356521567
- Sales unit
- pcs
- Product type
- RJ45 Connector
- Manufacturer order number
- 1419001
- Contact type
- Pin
- Width
- 13.8 mm
- Length
- 55.6 mm
- Height
- 17.3 mm
- Depth
- 55.6 mm
- Number of poles
- 8
- Number of plug-in contact rows
- 1
- Rated current In
- 1.75 A
- Ambient temperature
- 70 °C
- Rated voltage
- 72 V
- Rated surge voltage
- 72 kV
- Overvoltage category
- I
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.13–0.21 mm²
- Connectable conductor cross section multi-wired
- 0.13–0.21 mm²
- Housing material
- Plastic
- Coating housing
- Plastic-coated
- Type of locking
- Snap
- Polarization
- Plug
- Mounting method
- Inserted
- With interlocking device
- No
- With protective conductor
- No
- Operating temperature
- -40–70 °C
- Degree of protection (IP), mounted
- IP20
- EMC-version
- No
- Number of conduit inlets
- 1
- With sealing
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4046356521567
- SAP 1000489155
- Code 8929608
