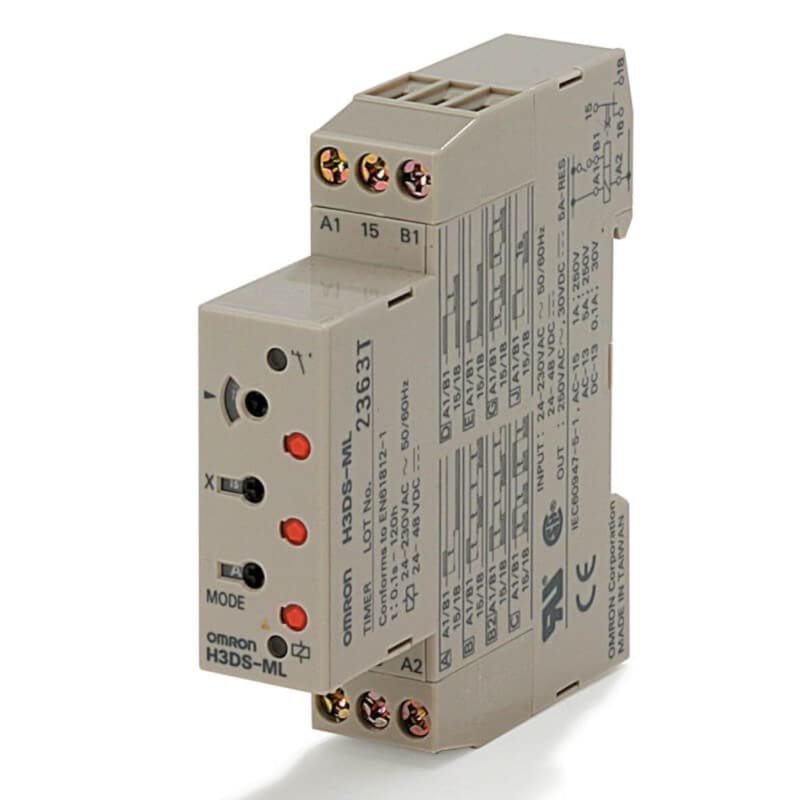

Omron H3DS-ML AC/DC Multi-Function Time Relay 24-230 VAC / 24-48 VDC
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron H3DS-ML is a 17.5 mm DIN-rail-mounted multi-function time relay with universal supply (24-230 VAC / 24-48 VDC) and a 5 A SPDT changeover output. It offers on-delay, off-delay, floating on/off and cyclic flashing functions across a time range of 0.1 s to 120 h, set through the 'Smart Dial' with lockable configuration. Suited to sequencing, delayed switching and interval control in industrial and building-services panels; IP30 with 22.5 x 79 x 100 mm footprint.
Technical Specifications
- Manufacturer part number (MPN)
- H3DS-ML AC/DC
- EAN / GTIN
- 4547648013475
- HS code
- 8536.90
- Sales unit
- pcs
- Degree of protection (IP)
- IP30
- Operating voltage AC 50 Hz
- 0–250 V
- Operating voltage AC 60 Hz
- 0–250 V
- Operating voltage DC
- 0–30 V
- Suitable for front mounting
- No
- Complete with socket
- No
- Relay technology category according to IEC 61810-7
- RT I
- Voltage type (operating voltage)
- AC/DC
- Type of electric connection
- Screw connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- Yes
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- No
- Function flashing, starting with pulse, fixed time
- No
- Clock function, starting with pause, variable
- No
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- Yes
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 24–230 V
- Rated control supply voltage AC 60 Hz
- 24–230 V
- Rated control supply voltage DC
- 24–48 V
- Voltage type for actuating
- AC/DC
- Nominal current
- 5 A
- Time range
- 0.1–432000 s
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Width
- 22.5 mm
- Height
- 79 mm
- Depth
- 100 mm
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4547648013475
- SAP 1000156682
- Code 8664141
Product Documentation
