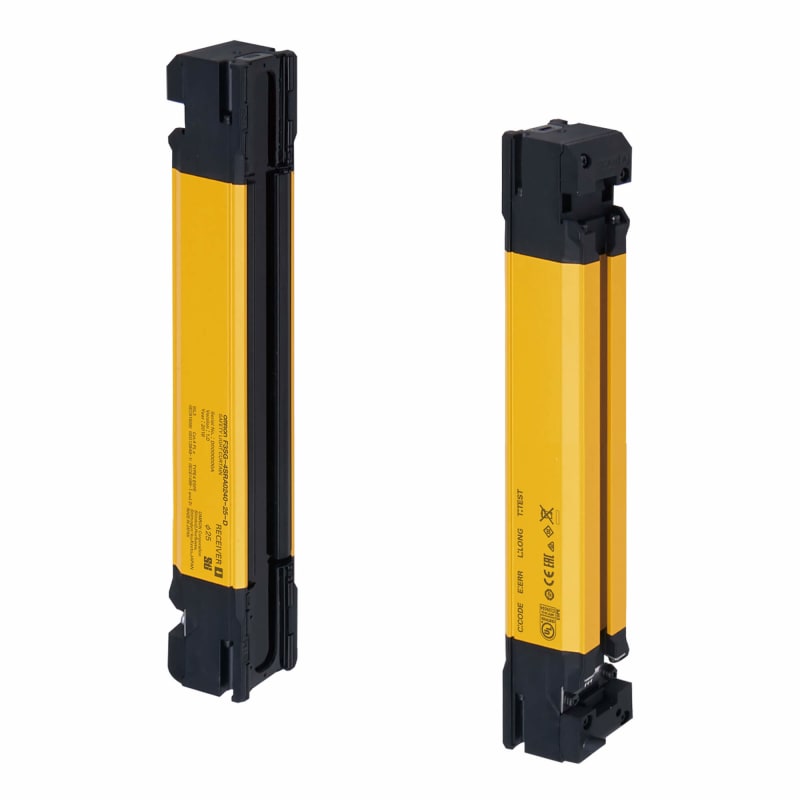

F3SG-4SRB0320-14 (F3G28105D)

Omron F3G28105D F3SG-4SRB0320-14.

Manufacturer part number (MPN)

F3G28105D

EAN / GTIN

4549734516433

Sales unit

pcs

Number of semiconductor outputs with signalling function

1

Number of protected semiconductor outputs

2

Fade-out possible

Yes

Type of switching output of the OSSD

PNP/NPN

Type of electric connection

Plug-in connection

Operation agent-safety class

Safety class 3

Width sensor

32 mm

Height of sensor

38 mm

Length of sensor

320 mm

Detection capability for test bodies

14 mm

Explosion safety category for gas

None

Explosion safety category for dust

None

Cascadable

Yes

Scope of delivery of the one-way system

Transmitter and receiver

Max. output current at protected output

300 mA

Ambient temperature

-30–55 °C

With muting function

Yes

Override possible

Yes

Response time

8 ms

Resolution of the light curtain

10 mm

Reduced resolution

Yes

Transmission range of the safety field

10 m

Switching voltage of OSSD at state "high"

24 V

Safety field height

320 mm

Type of safety according to IEC 61496-1

4

Rated control supply voltage DC

19.2–28.8 V

Voltage type

DC

With beam coding

Yes

With monitoring function downstream switching devices

Yes

Wavelength of the sensor

870 nm

With restart blockage

Yes

Suitable for safety functions

Yes

Degree of protection (IP)

IP67

Country of origin

China

HS Code

6303.91
