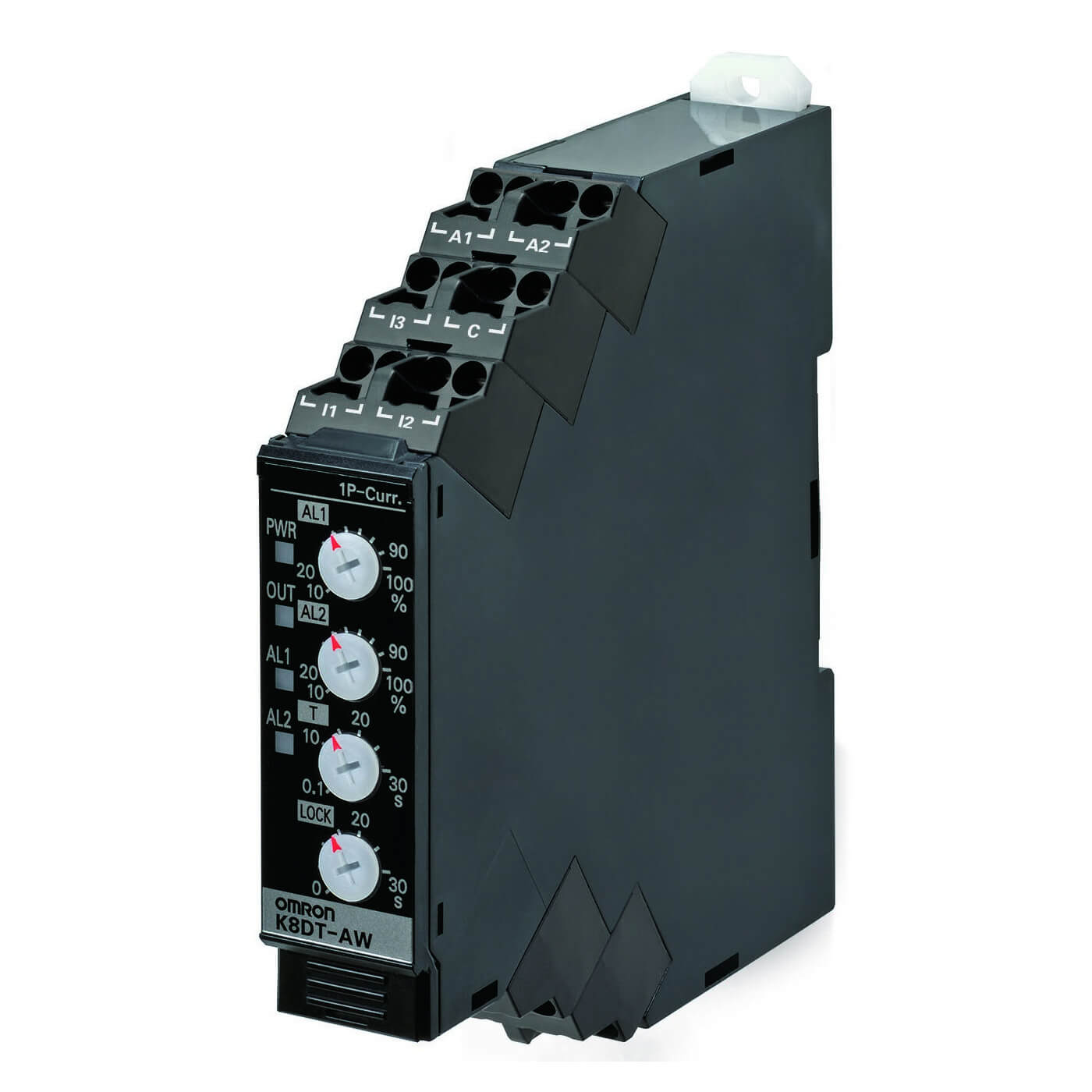

Omron K8DT-AW 1-Phase motor protection relay, push-in terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron K8DT-AW 1-phase motor protection relay, push-in terminals (K8DT-AW3CA). Omron K8DT-AW3CA, 1-phase motor protection relay, switching components / measuring and monitoring relay / 1-phase motor protection relays. Product type 1-phase motor protection relay. Series Omron K8DT-AW. Product family Switching Components / Measuring and Monitoring Relay / 1-phase Motor Protection Relays. Functions Over/under current. Installation type DIN rail. Terminal type Push-in.
Technical Specifications
- Manufacturer part number (MPN)
- K8DT-AW3CA
- EAN / GTIN
- 4548583773592
- Sales unit
- pcs
- Product type
- 1-phase motor protection relay
- Series
- Omron K8DT-AW
- Product family
- Switching Components / Measuring and Monitoring Relay / 1-phase Motor Protection Relays
- Functions
- Over/under current
- Installation type
- DIN rail
- Terminal type
- Push-in
- Size
- 17.5 mm
- Setting range
- 10 to 100 A AC, 20 to 200 A AC
- Supply voltage AC
- 100-240 V
- Output type
- Relay
- Contact description
- SPDT
- Body color
- Black
- External current transformer
- TRUE
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 100–240 V
- Supply voltage AC 60 Hz
- 100–240 V
- Rated switch current
- 5 A
- Voltage type (supply voltage)
- AC
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- Yes
- Single-phase under current possible
- Yes
- Three-phase under current possible
- No
- Single-phase overcurrent possible
- Yes
- Three-phase overcurrent possible
- No
- Single-phase hysteresis possible
- Yes
- Three-phase hysteresis possible
- No
- Contains function DC-voltage under current
- No
- Contains function DC-voltage overcurrent
- No
- Function DC-current hysteresis
- No
- Rated control supply voltage AC 50 Hz
- 100–240 V
- Rated control supply voltage AC 60 Hz
- 100–240 V
- Voltage type for actuating
- AC
- Current measuring range
- 10–200 A
- Min. adjustable delay-on energization time
- 0.1 s
- Max. permitted delay-on energization time
- 30 s
- Min. adjustable off-delay time
- 0.25 s
- Max. permitted off-delay time
- 0.25 s
- Number of contacts as change-over contact
- 1
- Width
- 17.5 mm
- Height
- 90 mm
- Depth
- 90 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9031.90
Cross References
- EAN 4548583773592
- SAP 1200456308
- Code 82636560
Product Documentation
More from Omron
Omron
TIME Relay Multi 24-240AC/DC (H3DK-M1 24-240VAC/Dc)
H3DK-M1 24-240VAC/DC
Omron
Cable M12 STRAIGHT 4-Pin PVC 20M
XS2FM12PVC4S20MEU1
Omron
Solid-State Relay 230VAC 60A
G3PA-260B-VD 5-24VDC
Omron
Relay 14-Pin 4 Changeover 5A 24VDC
MYS 4308R
Omron
Omron E3ZLS81 Background Suppression Photoelectric Sensor, 40-200 mm, PNP, 2 m Cable
Omron
Sikkerhetskontroller G9SP-N20S
Omron
Omron E3ZLS86 Background Suppression Photoelectric Sensor, 40-200 mm, PNP, M8 Connector
Omron
Omron S8VS-A/B switch-mode power supply, 240 W, 24 V DC, 10 A (S8VS24024AP)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy K8DT-AW3CA?
- K8DT-AW3CA can be ordered from cballast.com as a Omron catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Omron product?
- The manufacturer part number is K8DT-AW3CA.
- What is the HS code for K8DT-AW3CA?
- The customs tariff (HS) code for K8DT-AW3CA is 9031.90.
- Who manufactures K8DT-AW3CA?
- K8DT-AW3CA is a Omron product in the Control & Automation range.
- Is a datasheet available for K8DT-AW3CA?
- Yes — the K8DT-AW3CA datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for K8DT-AW3CA?
- The minimum order quantity is 1.
- Is K8DT-AW3CA available?
- Yes — K8DT-AW3CA is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
