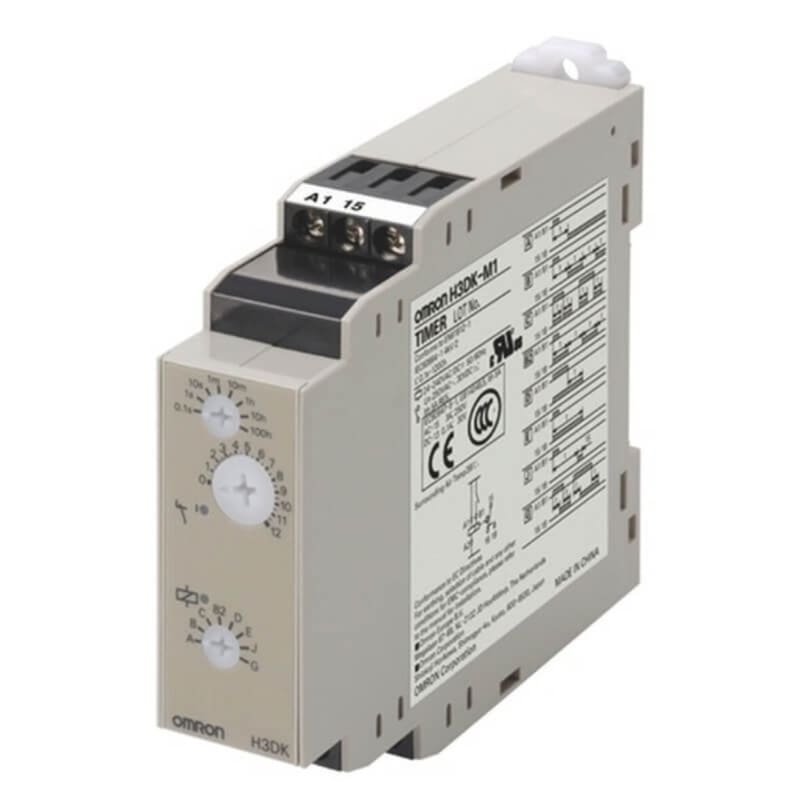

TIME Relay Multi 24-240AC/DC (H3DK-M1 24-240VAC/Dc)
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron H3DK-M1 24-240VAC/DC Multi-voltage, multifunction, 8 functions, 1 reléoutput, 24-240VAC/VDC.
Technical Specifications
- Manufacturer part number (MPN)
- H3DK-M1 24-240VAC/DC
- EAN / GTIN
- 4548583002227
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 24-240 V AC
- Complete with socket
- No
- Relay technology category according to IEC 61810-7
- RT I
- Type of electric connection
- Screw connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- Yes
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- No
- Function flashing, starting with pulse, fixed time
- Yes
- Clock function, starting with pause, variable
- No
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type for actuating
- AC/DC
- Time range
- 0.1–4320000 s
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Width
- 22.5 mm
- Height
- 79 mm
- Depth
- 100 mm
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583002227
- SAP 1000165374
- Code 8166022
Product Documentation
