Product Description

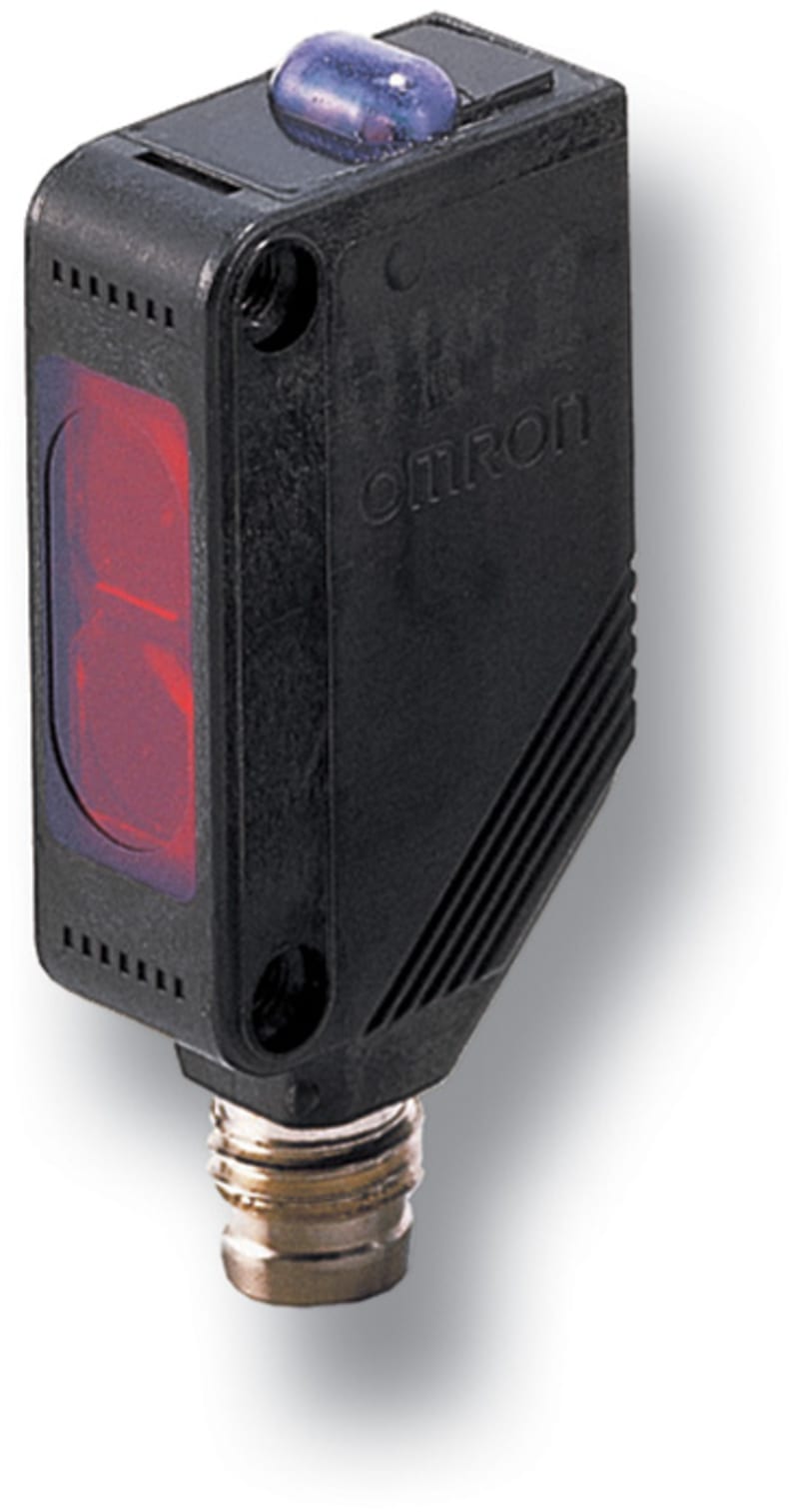

Omron E3Z-LL81-M1J 0.3M Photocell, background suppression Laser, 20-300mm, M12 "grisehale", PNP output.
Technical Specifications
- Manufacturer part number (MPN)
- E3Z-LL81-M1J 0.3M
- EAN / GTIN
- 4547648220620
- Sales unit
- pcs
- Connection
- M12 connector
- Output type
- PNP
- Light source
- Laser
- Sensing method
- Diffuse-reflective
- Sensing distance
- 30 cm
- Adjustment range
- 20–300 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 300 mm
- Max. switching distance
- 300 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable with connector
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 31 mm
- Length of sensor
- 20 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- Class 1
- Wavelength of the sensor
- 655 nm
- Type of light
- Laser diode, red light
- Light dot
- 0.4 mm²
- AWG-number
- 24
- Material of cable sheath
- Polyvinyl chloride (PVC)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- China
Standards & Compliance
- HS Code
- 8541.40
Cross References
- EAN 4547648220620
- SAP 1000711650
- Code 8434082
Product Documentation
Document preview: Laser PNP DIR. FOR AVST 30cm M12 (E3Z-LL81-M1J 0.3M) — Specification sheet
