Safety Limit Switch, Adjustable Roller Lever, 1NC/1NO, M20
Pricing
Request a quote
We reply within 24 hours
Product Description

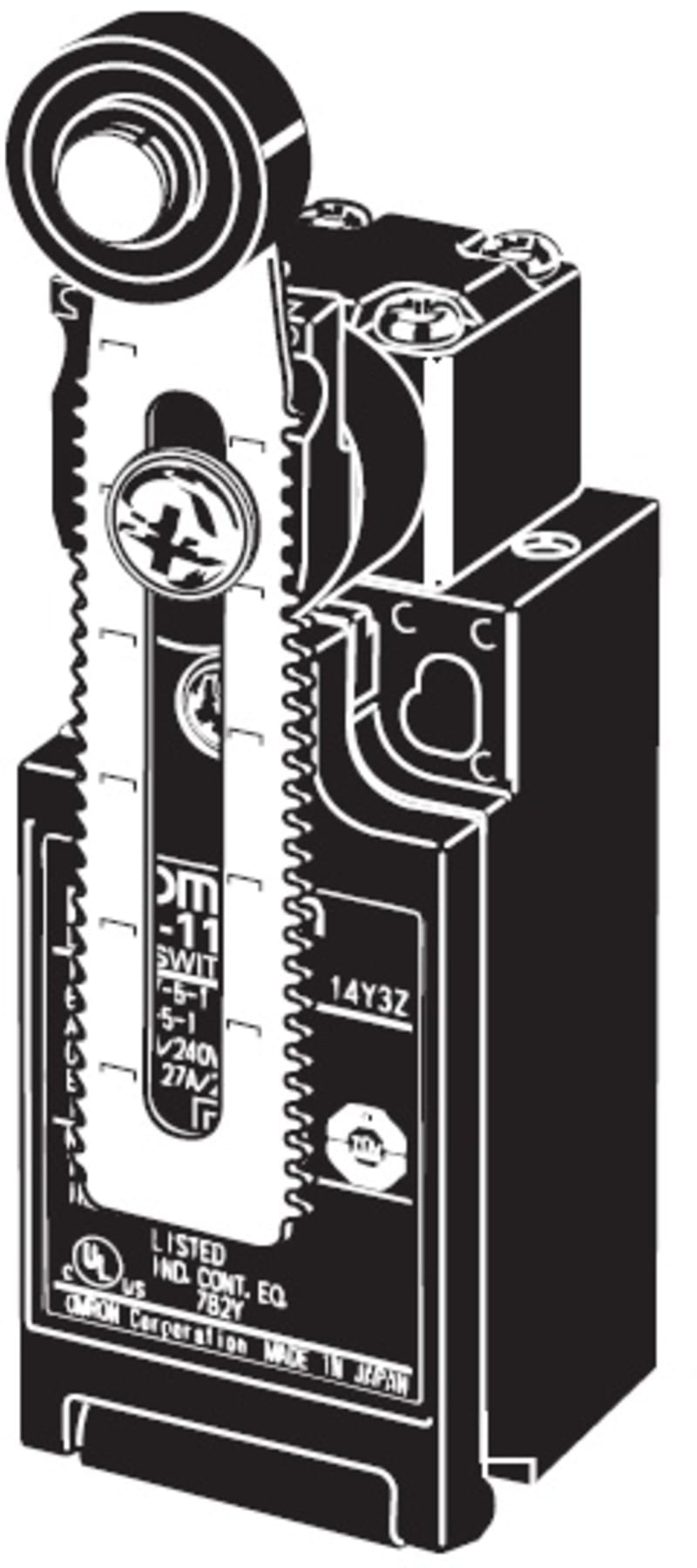

Omron D4N safety limit switch with an adjustable roller-lever actuator and forced opening for machine-guarding duty. 1 NC and 1 NO quick-break contacts, IP67 plastic housing with a single M20 metric cable entry. Rated 3 A at AC-15/230 V and 6 A at AC-15/125 V; operating range -30 to 70 °C.
Technical Specifications
- Manufacturer part number (MPN)
- D4N-412G
- EAN / GTIN
- 4547648034203
- HS code
- 8536.90
- Sales unit
- pcs
- Contact configuration
- 1 NC / 1 NO
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67
- Forced opening
- Yes
- Type of control element
- Adjustable roller lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 31 mm
- Diameter sensor
- 17.5 mm
- Height of sensor
- 101.75 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -30–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4547648034203
- SAP 1000158679
- Code 8199712
