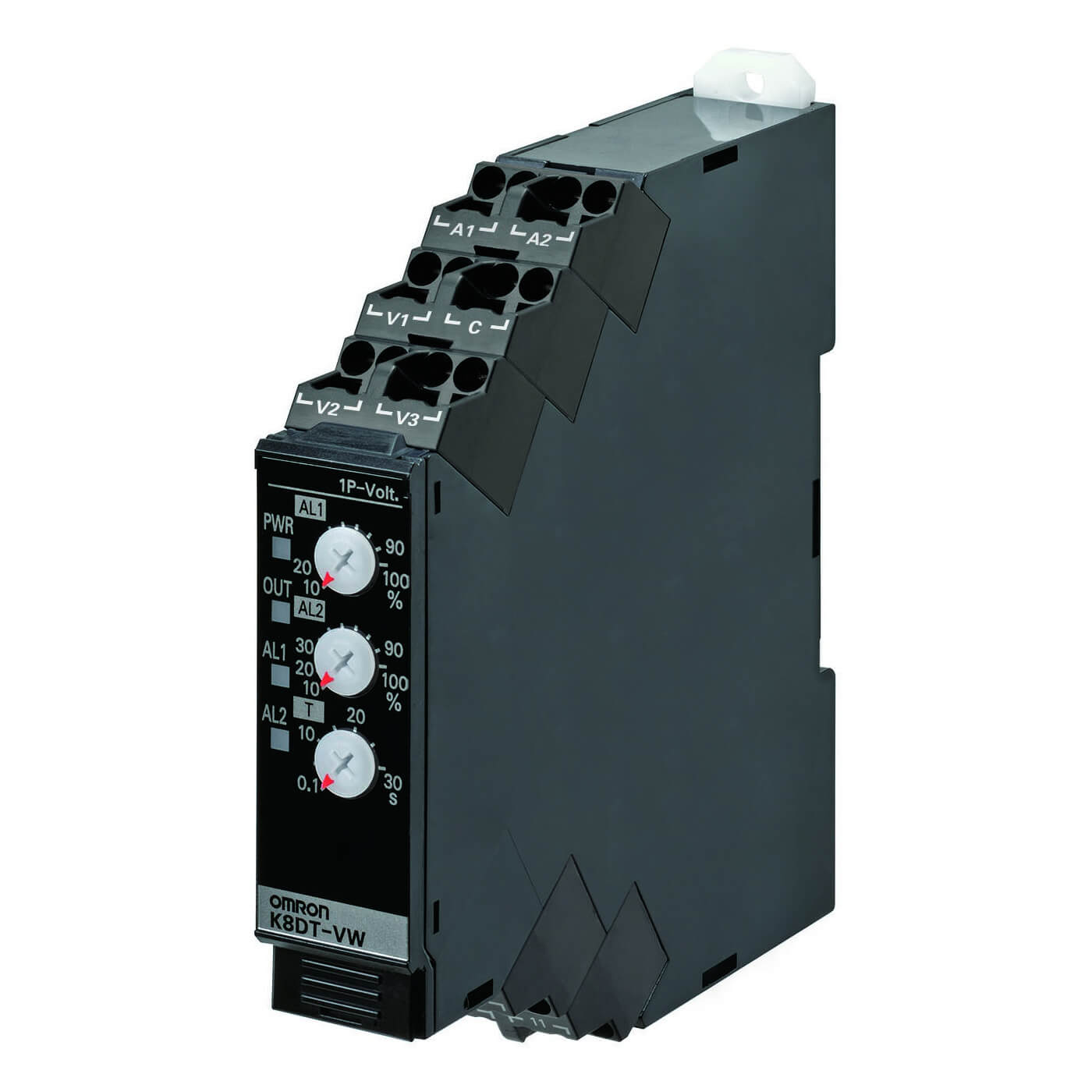

Omron K8DT-VW 1-Phase motor protection relay, push-in terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron K8DT-VW 1-phase motor protection relay, push-in terminals (K8DT-VW3CA). Omron K8DT-VW3CA, 1-phase motor protection relay, switching components / measuring and monitoring relay / 1-phase motor protection relays. Product type 1-phase motor protection relay. Series Omron K8DT-VW. Product family Switching Components / Measuring and Monitoring Relay / 1-phase Motor Protection Relays. Functions Over/under voltage. Installation type DIN rail. Terminal type Push-in.
Technical Specifications
- Manufacturer part number (MPN)
- K8DT-VW3CA
- EAN / GTIN
- 4548583773783
- Sales unit
- pcs
- Product type
- 1-phase motor protection relay
- Series
- Omron K8DT-VW
- Product family
- Switching Components / Measuring and Monitoring Relay / 1-phase Motor Protection Relays
- Functions
- Over/under voltage
- Installation type
- DIN rail
- Terminal type
- Push-in
- Size
- 17.5 mm
- Setting range
- 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC
- Supply voltage AC
- 100-240 V
- Output type
- Relay
- Contact description
- SPDT
- Body color
- Black
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 100–240 V
- Supply voltage AC 60 Hz
- 100–240 V
- Rated switch current
- 5 A
- Voltage type (supply voltage)
- AC
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Single-phase under voltage possible
- Yes
- Three-phase under voltage possible
- No
- Single-phase overvoltage possible
- Yes
- Three-phase overvoltage possible
- No
- Single-phase hysteresis possible
- No
- Three-phase hysteresis possible
- No
- Contains function DC-under voltage
- Yes
- Contains function DC overvoltage
- Yes
- Contains function DC-voltage hysteresis
- No
- Voltage measuring range 1
- 20–600 V
- Type of voltage measuring range
- AC/DC
- Rated control supply voltage AC 50 Hz
- 100–240 V
- Rated control supply voltage AC 60 Hz
- 100–240 V
- Voltage type for actuating
- AC
- Response value voltage
- 20–600 V
- Min. adjustable delay-on energization time
- 0.1 s
- Max. permitted delay-on energization time
- 30 s
- Number of contacts as change-over contact
- 1
- Width
- 17.5 mm
- Height
- 90 mm
- Depth
- 90 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9031.90
Cross References
- EAN 4548583773783
- SAP 1000753481
- Code 8498062
Product Documentation
