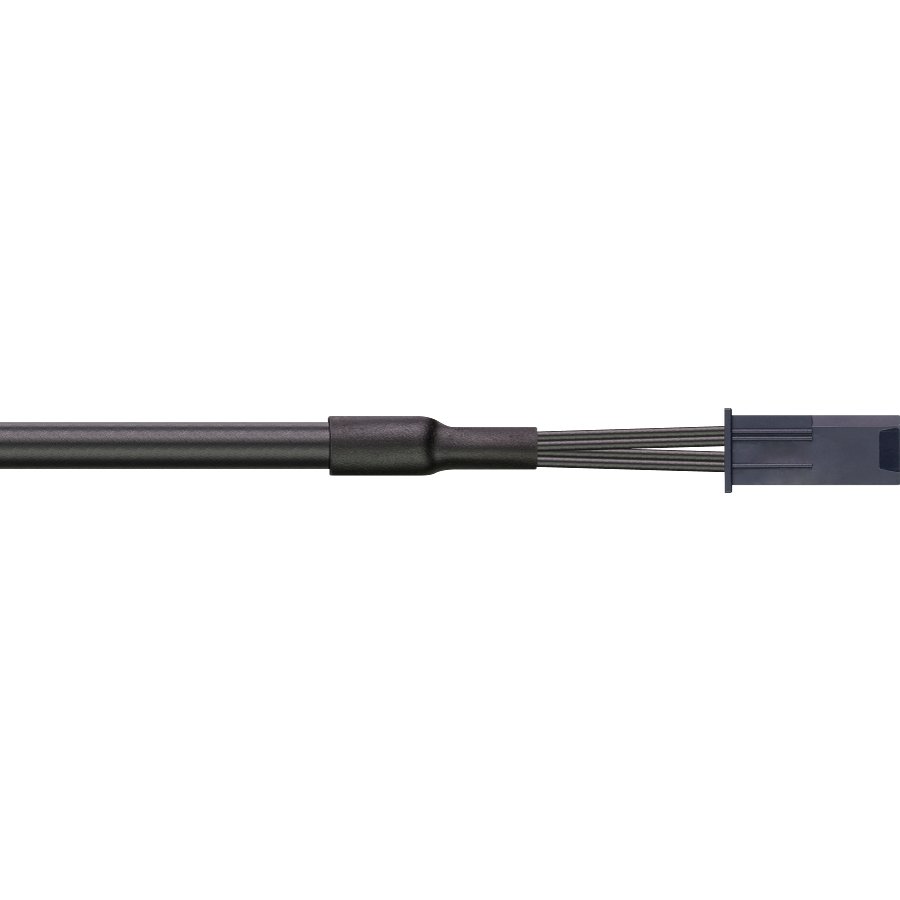

Motor cable with polymer connector (DLE904161278-3)
Part numberDLE904161278-3
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Lightweight motor cable with durable polymer connector for plug-and-play connectivity.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904161278-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- 5G0.75
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 40 kg/km
- Weight
- 221 g
- Shipping weight (kg or kg/m)
- 0.221
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 73 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 87.5 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 70 mm
- Min. bend radius, fixed (factor)
- 7 x d
- Min. bend radius, fixed
- 49 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound with an optimised pitch length.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- UL/CSA AWM
- Style 10493 and 2464, 300 V, 80 °C
Cross References
- OEM-URL https://www.igus.com/product/ini_cables_motor_cable_connector
Product Documentation
Document preview: igus DLE904161278-3 — Technical data sheet
More from igus
igus

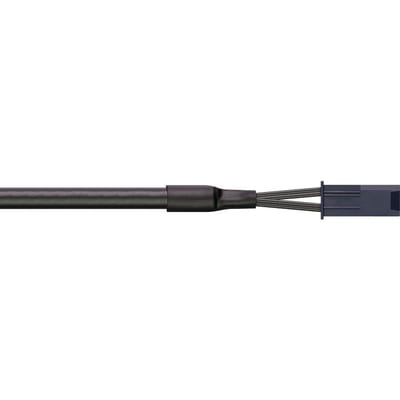

BLDC Motor cable with polymer connector
DLE904172362-3
igus

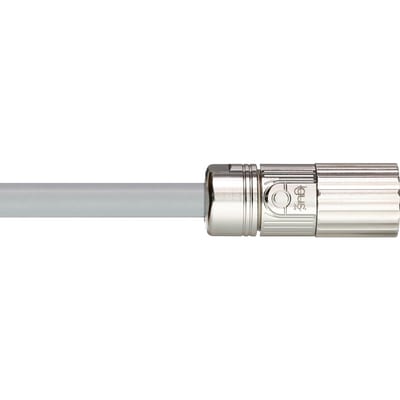

Motor cable with M17 connector
DLE904121457-3
igus

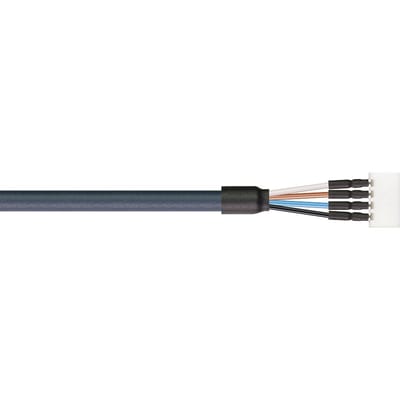

Motor cable with polymer connector (DLE904121461-3)
igus

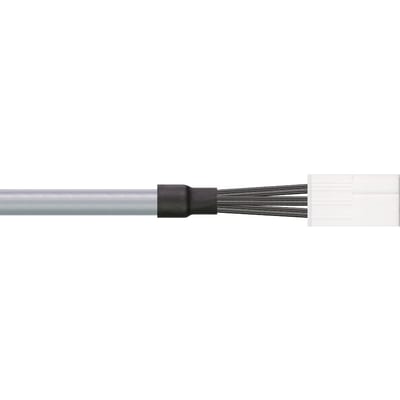

Motor & encoder cable (Hall), unshielded
DLE904121463-3
igus

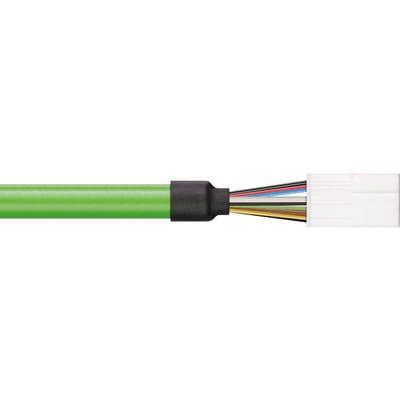

Motor & encoder cable (Hall), shielded
DLE904121462-3
igus

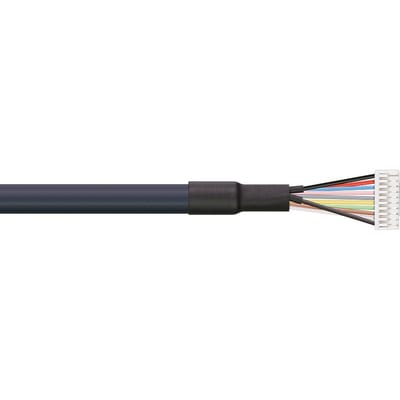

Encoder cable (encoder) with plastic connector (10 pin)
DLE904121459-3
igus

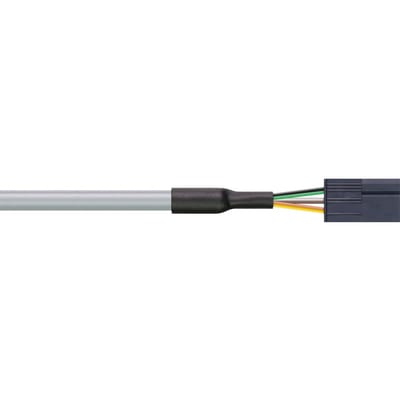

encoder cable (Hall) with polymer connector
DLE904172364-3
igus

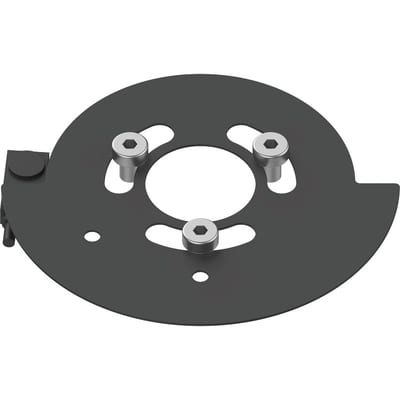

Initiator kit for drygear® RL-D worm gearbox
