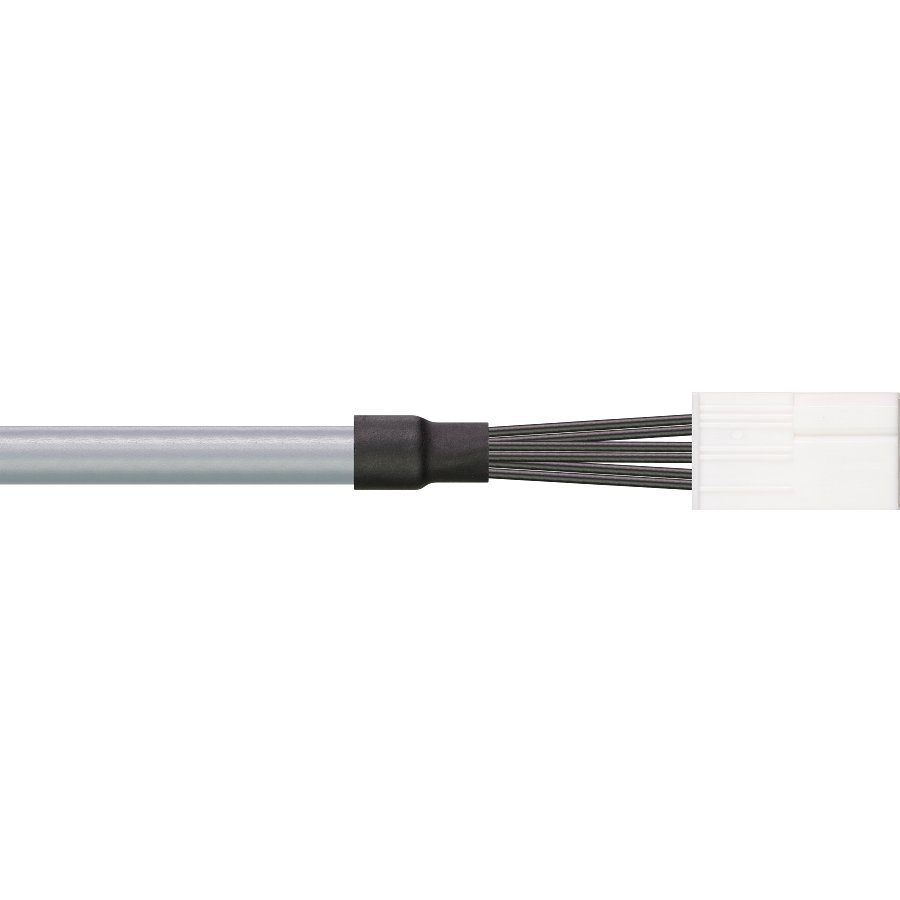

Motor & encoder cable (Hall), unshielded
Pricing
Request a quote
We reply within 24 hours
Overview
igus Motor & encoder cable (Hall), unshielded (part number DLE904121463-3) is listed under Safety & Detection / Tools. Rated voltage: 60 V; Connector design: straight; Protective conductor: with green-yellow earth core; Copper index kg/km: 37 kg/km; Weight: 228 g; Shipping weight (kg or kg/m): 0.23.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121463-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- 7G0.5
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 37 kg/km
- Weight
- 228 g
- Shipping weight (kg or kg/m)
- 0.23
- Outer diameter (d) max. mm
- 7.5 mm
- Weight per km
- 76 kg/km
- L1
- 3 m
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 56.25 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 45 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 30 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket colour
- Silver grey (comparable to RAL 7001)
- UL/CSA AWM
- Style 10493 and 20200, 300 V, 60 °C
