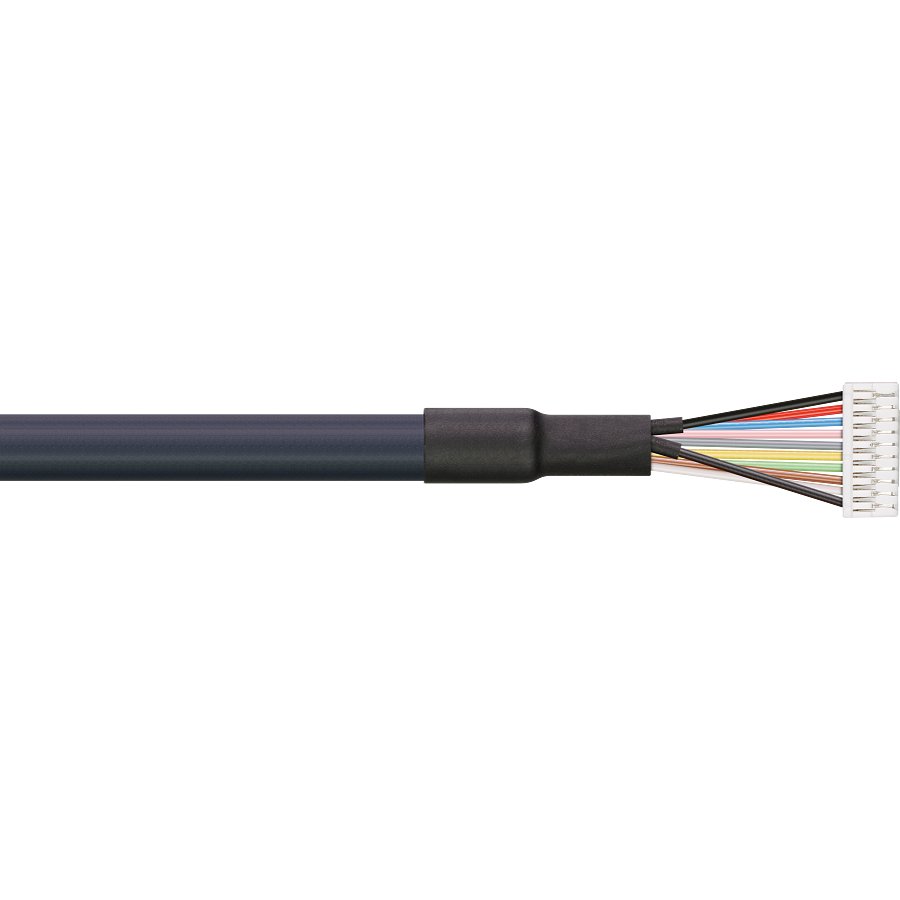

Encoder cable (encoder) with plastic connector (10 pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
10-pin encoder cable with plastic connector for precise motor signal handling.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121459-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- (4x(2x0.14))C
- Copper index kg/km
- 30 kg/km
- Weight
- 189 g
- Shipping weight (kg or kg/m)
- 0.191856
- Outer diameter (d) max. mm
- 7.5 mm
- Weight per km
- 63 kg/km
- L1
- 3 m
- Min. bend radius, e-chain
- 51 mm
- Min. bend radius, flexible
- 37.5 mm
- Min. bend radius, fixed
- 30 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- UL/CSA AWM
- Style 11884 and 22357, 300 V, 90 °C
Cross References
- OEM-URL https://www.igus.com/product/ini_cables_rotary_encoder_cable_with_plastic_plug_10_poles
Product Documentation
More from igus
igus
encoder cable (Hall) with polymer connector
DLE904172364-3
igus
Initiator kit for drygear® RL-D worm gearbox
RL-D-20-IK-001-BB
igus

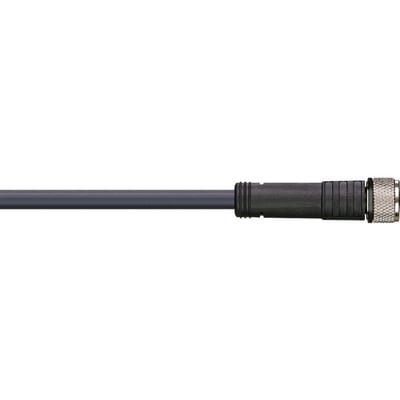

Proximity switch/brake cable with M8 connector
DLE904121453-3
igus

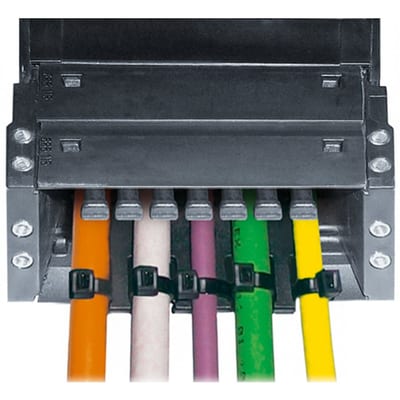

Integrated Strain Relief for E2 R Series e-tubes
3050.Z
igus
PMAFIX VB Grey Connectors with 90° Bend Angle
I-SVBV-M257
igus

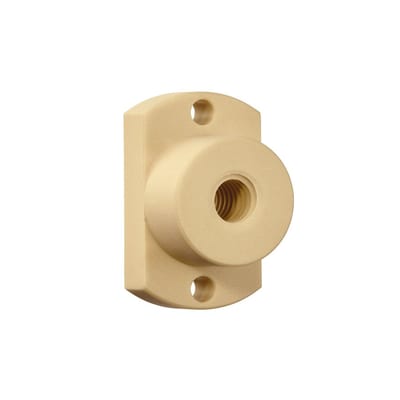

DryLin® flange lead screw nut with flat, trapezoidal thread, multiple start, J350FRM
J350FRM-131315TR06X2P1
igus

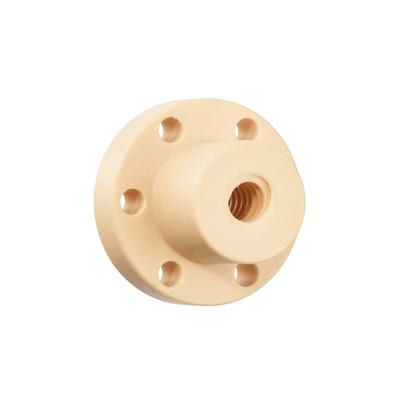

drylin® trapezoidal lead screw nut with flange, multiple start, JFRM (JFRM-1315TR06X2P1)
igus

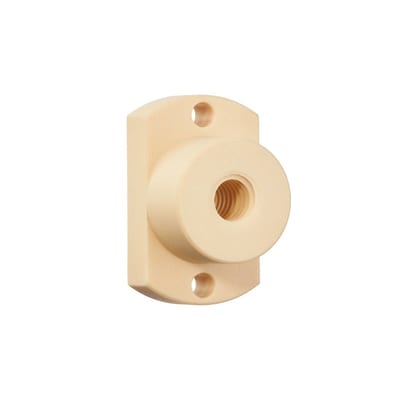

DryLin® flange lead screw nut with flat, trapezoidal thread, multiple start, JFRM
JFRM-131315TR06X2P1
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy DLE904121459-3?
- DLE904121459-3 can be ordered from cballast.com as a igus catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this igus product?
- The manufacturer part number is DLE904121459-3.
- Who manufactures DLE904121459-3?
- DLE904121459-3 is a igus product in the Safety & Detection range.
- Is a datasheet available for DLE904121459-3?
- Yes — the DLE904121459-3 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for DLE904121459-3?
- The minimum order quantity is 1.
- Is DLE904121459-3 available?
- Yes — DLE904121459-3 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for DLE904121459-3?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
