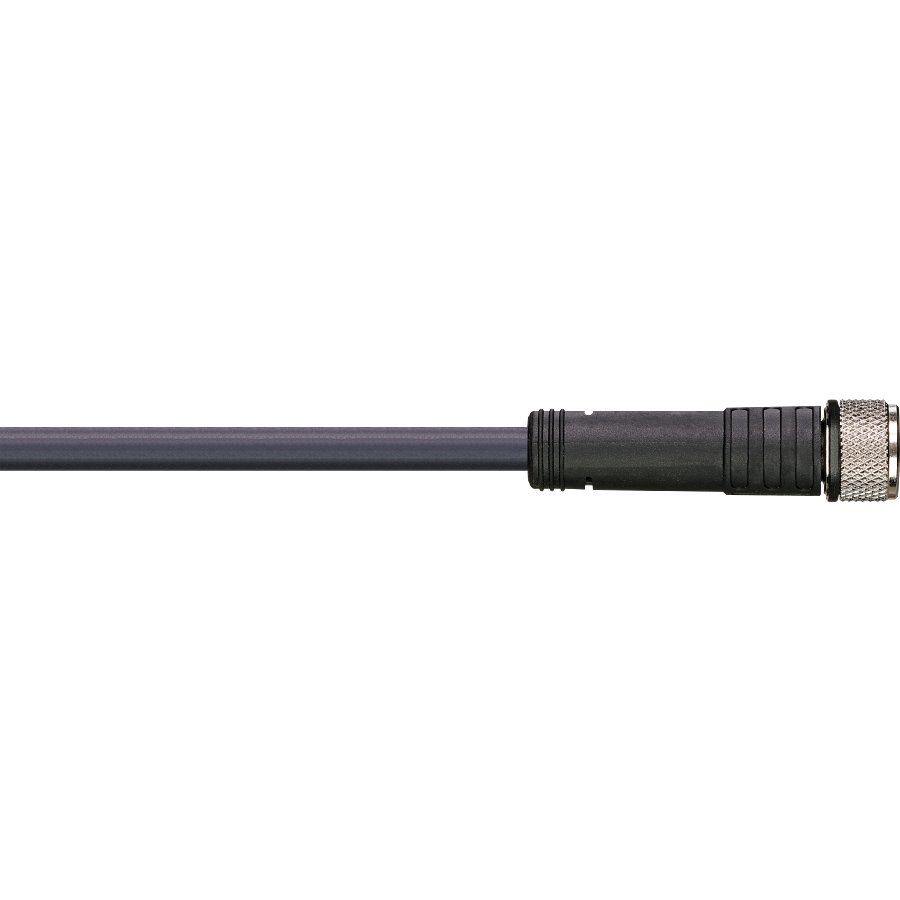

Proximity switch/brake cable with M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Combination proximity switch and brake cable with M8 connector for clean signal and power delivery.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121453-3
- Brand
- IGUS
- Category
- Tools
- Connector A
- M8 cable socket
- Connector B
- open end
- Current carrying capacity
- 4 A
- Rated voltage
- 60 V
- Connector design
- straight
- igus® part description
- CF.INI-P3-M8-BG-3
- Number of cores and conductor nominal cross-section
- 3x0.25
- Copper index kg/km
- 8 kg/km
- Weight
- 66 g
- Shipping weight (kg or kg/m)
- 0.06506
- Outer diameter (d) max. mm
- 4.5 mm
- Weight per km
- 22 kg/km
- Min. bend radius, e-chain (factor)
- 5 x d
- Min. bend radius, e-chain
- 22.5 mm
- Min. bend radius, flexible (factor)
- 4 x d
- Min. bend radius, flexible
- 18 mm
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 13.5 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- UL/CSA AWM
- Style 11884 and 22357, 300 V, 90 °C
