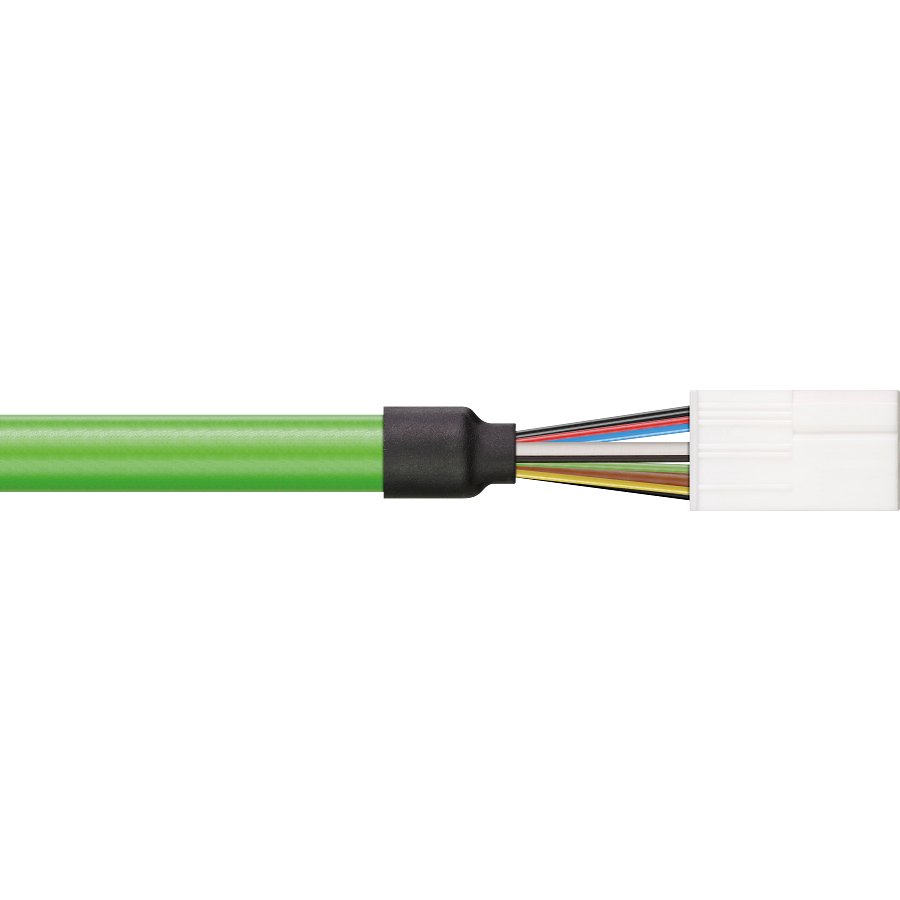

Motor & encoder cable (Hall), shielded
Pricing
Request a quote
We reply within 24 hours
Overview
igus Motor & encoder cable (Hall), shielded (part number DLE904121462-3) is listed under Safety & Detection / Tools. Connector design: straight; Copper index kg/km: 64 kg/km; Core group 1 core structure: 4x(2x0.14)C; Core group 1 colour code: yellow/black, red/black, blue/black, green/black; Core group 2 core structure: 2x(1.0)C; Weight: 338 g.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121462-3
- Brand
- IGUS
- Category
- Tools
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- 4x(2x0.14)C+2x(1.0)C
- Copper index kg/km
- 64 kg/km
- Core group 1 core structure
- 4x(2x0.14)C
- Core group 1 colour code
- yellow/black, red/black, blue/black, green/black
- Core group 2 core structure
- 2x(1.0)C
- Weight
- 338 g
- Shipping weight (kg or kg/m)
- 0.338
- Outer diameter (d) max. mm
- 9.5 mm
- Weight per km
- 112 kg/km
- L1
- 3 m
- Min. bend radius, e-chain
- 95 mm
- Min. bend radius, flexible
- 76 mm
- Min. bend radius, fixed
- 47.5 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- UL/CSA AWM
- Style 10467 and 2464, 300 V, 80 °C
