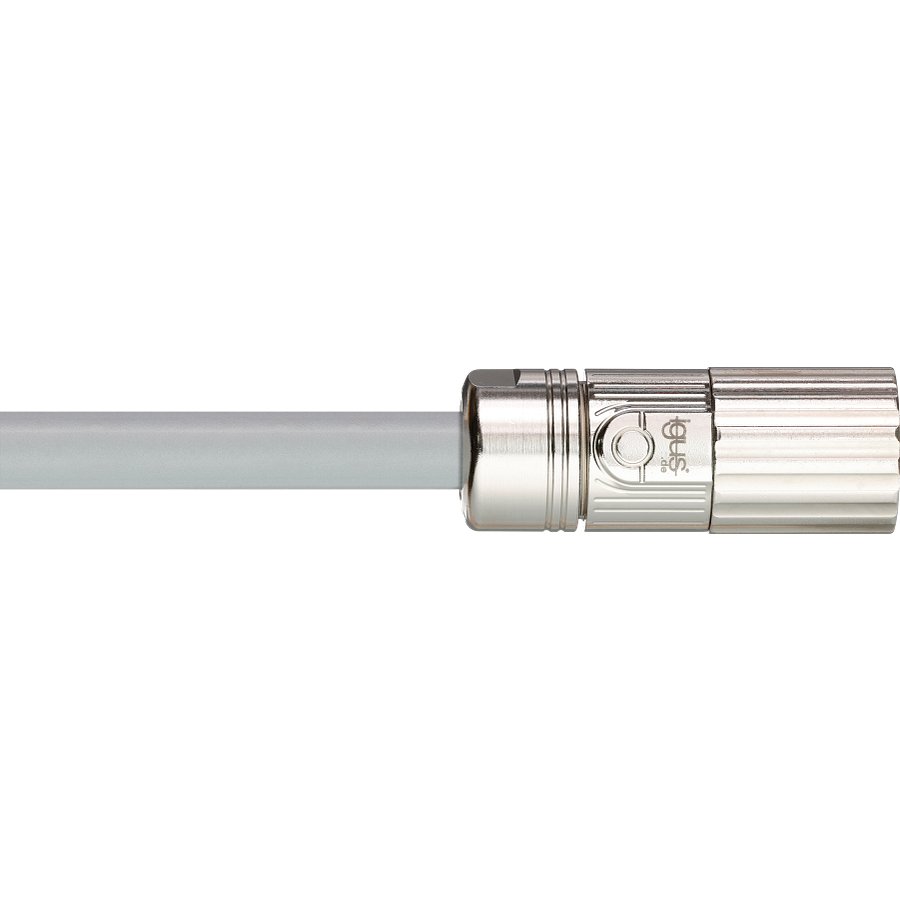

Motor cable with M17 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Durable motor cable with M17 connector for reliable power and signal transmission in drive systems.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121457-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- (7G0.75)C
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 83 kg/km
- Weight
- 453 g
- Shipping weight (kg or kg/m)
- 0.47084
- Outer diameter (d) max. mm
- 10.5 mm
- Weight per km
- 151 kg/km
- Min. bend radius, e-chain (factor)
- 6.8 x d
- Min. bend radius, e-chain
- 71.4 mm
- Min. bend radius, flexible (factor)
- 5 x d
- Min. bend radius, flexible
- 52.5 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 42 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores wound in a layer with short pitch length.
- Outer jacket colour
- Window grey (comparable to RAL 7040)
- UL/CSA AWM
- Style 11323 and 21223, 1000 V, 80 °C
- DNV
- Type approval certificate TAE00003X1
Cross References
- OEM-URL https://www.igus.com/product/ini_cables_motor_cable_with_m17_connector
Product Documentation
