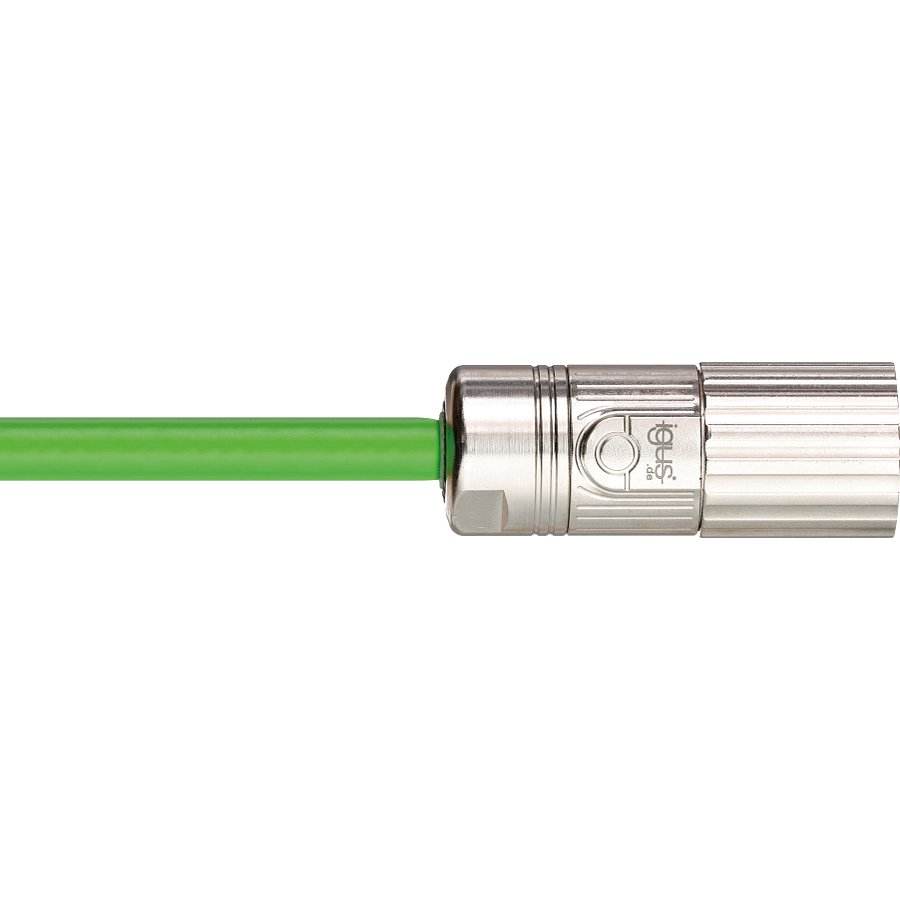

Encoder cable (encoder) with M17 connector
Part numberDLE904121458-3
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
High-performance encoder cable with M17 connector for accurate signal transmission and robust connectivity.
Technical Specifications
- Manufacturer part number (MPN)
- DLE904121458-3
- Brand
- IGUS
- Category
- Tools
- Rated voltage
- 60 V
- Connector design
- straight
- Number of cores and conductor nominal cross-section
- (4x(2x0.25)+2x0.5)C
- Copper index kg/km
- 49 kg/km
- Core group 1 core structure
- 4x(2x0.25)
- Core group 1 colour code
- brown/green, blue/violet, grey/pink, red/black
- Core group 2 core structure
- 2x0.5
- Core group 2 colour code
- white, brown
- Weight
- 237 g
- Shipping weight (kg or kg/m)
- 0.2964
- Outer diameter (d) max. mm
- 8 mm
- Weight per km
- 79 kg/km
- L1
- 3 m
- Min. bend radius, e-chain
- 80 mm
- Min. bend radius, flexible
- 64 mm
- Min. bend radius, fixed
- 40 mm
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- According to measuring system specification
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- UL/CSA AWM
- Style 10467 and 2464, 300 V, 80 °C
