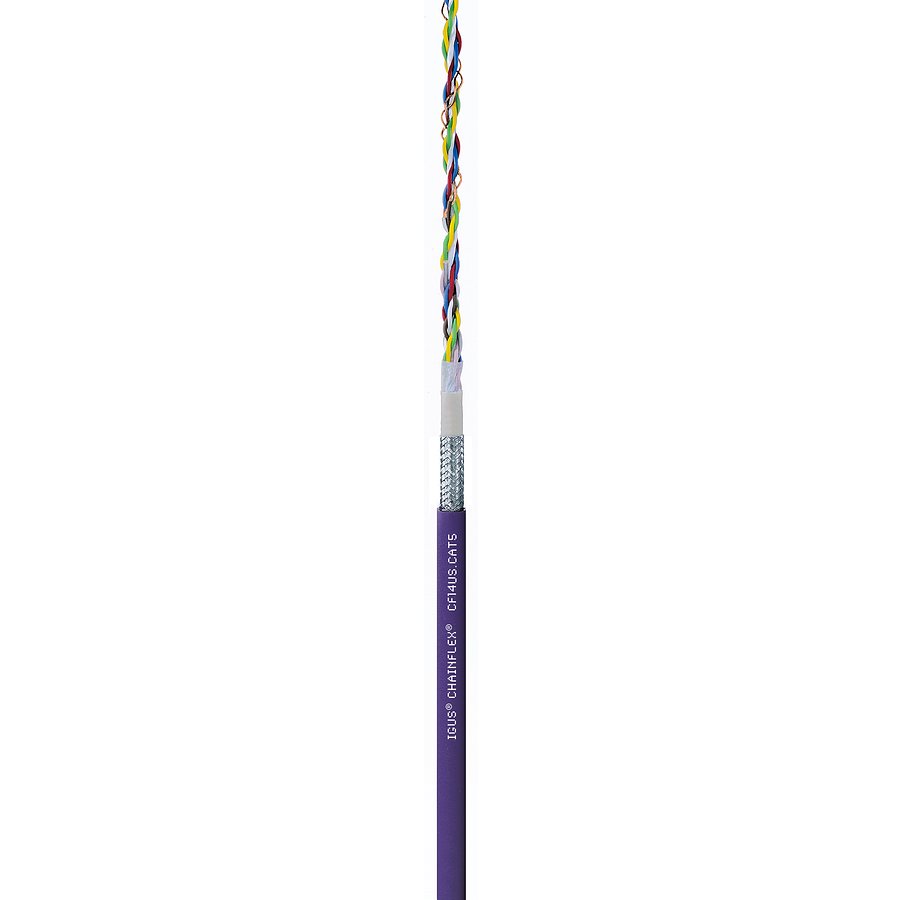

chainflex® bus cable CF14US CAT5E Ethernet (CF14US-02-04-02)
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® bus cable CF14US CAT5E Ethernet (CF14US-02-04-02) is listed under Safety & Detection / Tools. Bus system: Ethernet/CAT5e; Copper index kg/km: 11 kg/km; Shipping weight (kg or kg/m): 0.089; Outer diameter (d) max. mm: 7.6 mm; Weight per km: 89 kg/km; Min. bend radius, e-chain: 95 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF14US.02.04.02
- Brand
- IGUS
- Category
- Tools
- Bus system
- Ethernet/CAT5e
- Number of cores and conductor nominal cross-section
- 4 PRx0.14
- Copper index kg/km
- 11 kg/km
- Shipping weight (kg or kg/m)
- 0.089
- Outer diameter (d) max. mm
- 7.6 mm
- Weight per km
- 89 kg/km
- Min. bend radius, e-chain (factor)
- 11.5 x d
- Min. bend radius, e-chain
- 95 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, fixed (factor)
- 7.5 x d
- Temperature e-chain®
- -20°C up to +70°C
- Temperature, flexible
- -40°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -45°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- travel length
- Travels up to 20 m
- torsion
- No Torsion
- Conductor
- Conductor stranded from untinned copper strands (according to DIN EN 60228)
- Outer jacket
- Low-adhesion PUR-based mixture adapted to the requirements of energy chains (according to DIN EN 50363-10-2).
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 300V
- UV resistance
- Medium
- CE
- ce_text_03
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF14US-02-04-02
More from igus
igus
chainflex® bus cable CF14US CAT5E Ethernet (CF14US-02-04-02-UV)
CF14US.02.04.02.UV
igus
chainflex® control cable CF160.UL
CF160.UL.15.12
igus
chainflex® control cable CF2
CF2.01.04
igus
chainflex® servo cable CF210-UL PVC
CF210.UL.07.03.02.01
igus
chainflex® CF211 data cable PVC
CF211.02.01.02
igus
chainflex® servo cable CF21-UL PVC
CF21.07.05.02.01.UL
igus
chainflex® control cable CF150.UL
CF150-UL-15-25
igus
chainflex® CF240-PUR data cable PUR
CF240.PUR.01.04
Catalogue entry last verified: 2026-10-03.
Frequently asked questions
- Where can I buy CF14US.02.04.02?
- CF14US.02.04.02 can be ordered from cballast.com as a igus catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this igus product?
- The manufacturer part number is CF14US.02.04.02.
- What is the HS code for CF14US.02.04.02?
- The customs tariff (HS) code for CF14US.02.04.02 is 8544.49.
- Who manufactures CF14US.02.04.02?
- CF14US.02.04.02 is a igus product in the Safety & Detection range.
- What is the minimum order quantity for CF14US.02.04.02?
- The minimum order quantity is 1.
- Is CF14US.02.04.02 available?
- Yes — CF14US.02.04.02 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for CF14US.02.04.02?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
