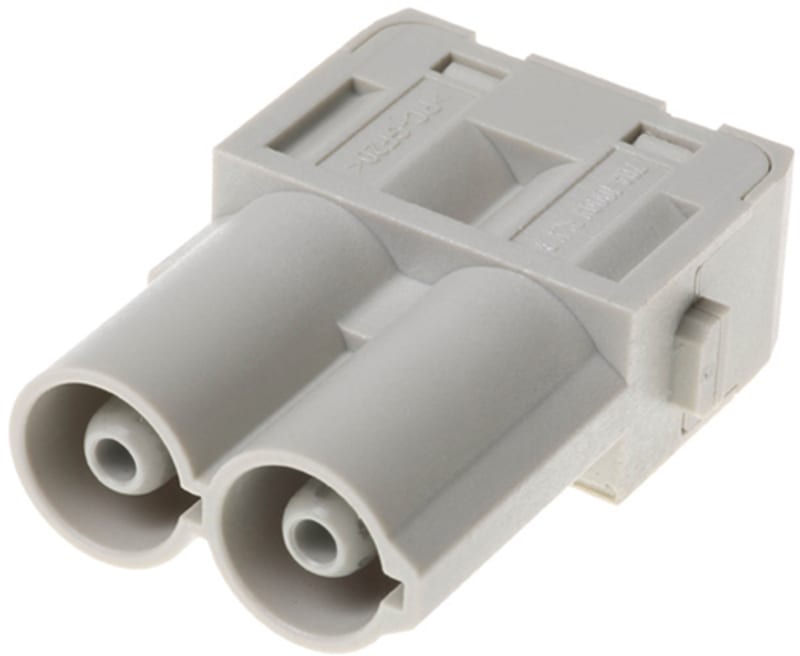

Han 70A axial module, male 14-22 mm²

Harting 09140022642 Manufacturer description: Han® 70 A module; Single module; Axial screw termination; Male; Contacts: 2; Conductor cross-section: 14. 22 mm²; Rated current: 70 A; Polycarbonate (PC); RAL 7032 (pebble grey); Copper alloy; Silver plated. Plug skrumodul 2-pole 70Amp.

Manufacturer part number (MPN)

09140022642

EAN / GTIN

5713140019645

Sales unit

pcs

Package quantity

2 pcs

Category

Modules

Type of module

Han® 70 A module

Size of the module

Single module

Series

Han-Modular®

Features

Finger safe contacts

Termination method

Axial screw termination

Gender

Male

Number of contacts

2

Details

Finger safe

Conductor cross-section (mm²)

14 ... 22 mm²

Wire outer diameter

≤10 mm

Rated current

70 A

Rated voltage

1000 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Contact resistance

0.5 mΩ

Limiting temperature

-40 ... +125 °C

Stripping length

12.5 ... 13.5 mm

Tightening torque

4 Nm @ 14 mm² | 4 Nm @ 16 mm² | 4 Nm @ 22 mm²

Mating cycles

500

ECHA SCIP number

1e38d35d-d1be-4585-8e03-95faccd739bf

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984 | IEC 61373 Category 2

European customs tariff number

85389099

Packaging size

2

Net weight

30 g

Country of origin

Germany

eCl@ss

27440217 Module for industrial connectors (power/signals)

ETIM

EC000438

UNSPSC 24.0

39121552

Width

15 mm

Height

34 mm

Depth

41 mm

With wire protection

No

Number of poles

2

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

8 kV

Type of electric connection

Axial screw connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

6 mm

Contact insert without contacts

No

Connectable conductor cross section multi-wired

14–22 mm²

With protective conductor

Yes

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

70 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

2

HS Code

8536.69
