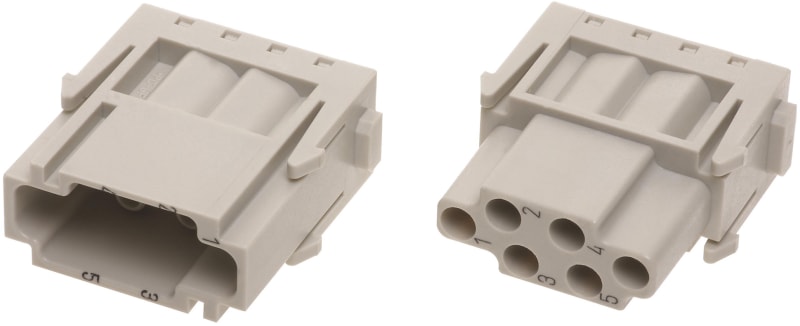

Han E module, crimp male
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09140063001 Manufacturer description: Han E® module; Single module; Crimp termination; Male; Contacts: 6; Conductor cross-section: 0.14. 4 mm²; Rated current: 16 A; Polycarbonate (PC); RAL 7032 (pebble grey). Han-Modular®, Plug Han E® module 6-pole, crimp.
Technical Specifications
- Manufacturer part number (MPN)
- 09140063001
- EAN / GTIN
- 5713140020481
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Category
- Modules
- Type of module
- Han E® module
- Size of the module
- Single module
- Series
- Han-Modular®
- Termination method
- Crimp termination
- Gender
- Male
- Number of contacts
- 6
- PE contact
- No
- Details
- Please order crimp contacts separately.
- Conductor cross-section (mm²)
- 0.14 ... 4 mm²
- Wire outer diameter
- ≤4.8 mm
- Rated current
- 16 A
- Rated voltage
- 500 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- 10000
- Note on the mating cycles
- Mating cycles with other HMC components
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984 | IEC 61373 Category 2
- European customs tariff number
- 85389099
- Packaging size
- 2
- Net weight
- 10.6 g
- Country of origin
- Germany
- eCl@ss
- 27440217 Module for industrial connectors (power/signals)
- ETIM
- EC000438
- UNSPSC 24.0
- 39121552
- Width
- 15 mm
- Height
- 35 mm
- Depth
- 42 mm
- Shape
- Rectangular
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 6
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 6 kV
- Type of electric connection
- Crimp connection
- Overvoltage category
- III
- Diameter plug-in contact
- 2.5 mm
- Contact insert without contacts
- Yes
- Connectable conductor cross section multi-wired
- 0.14–4 mm²
- With protective conductor
- No
- Material connector insert
- Thermoplastic
- Rated current In
- 16 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 10000
- Number of power contacts
- 6
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140020481
- SAP 1000444675
- Code 81035765
Product Documentation
