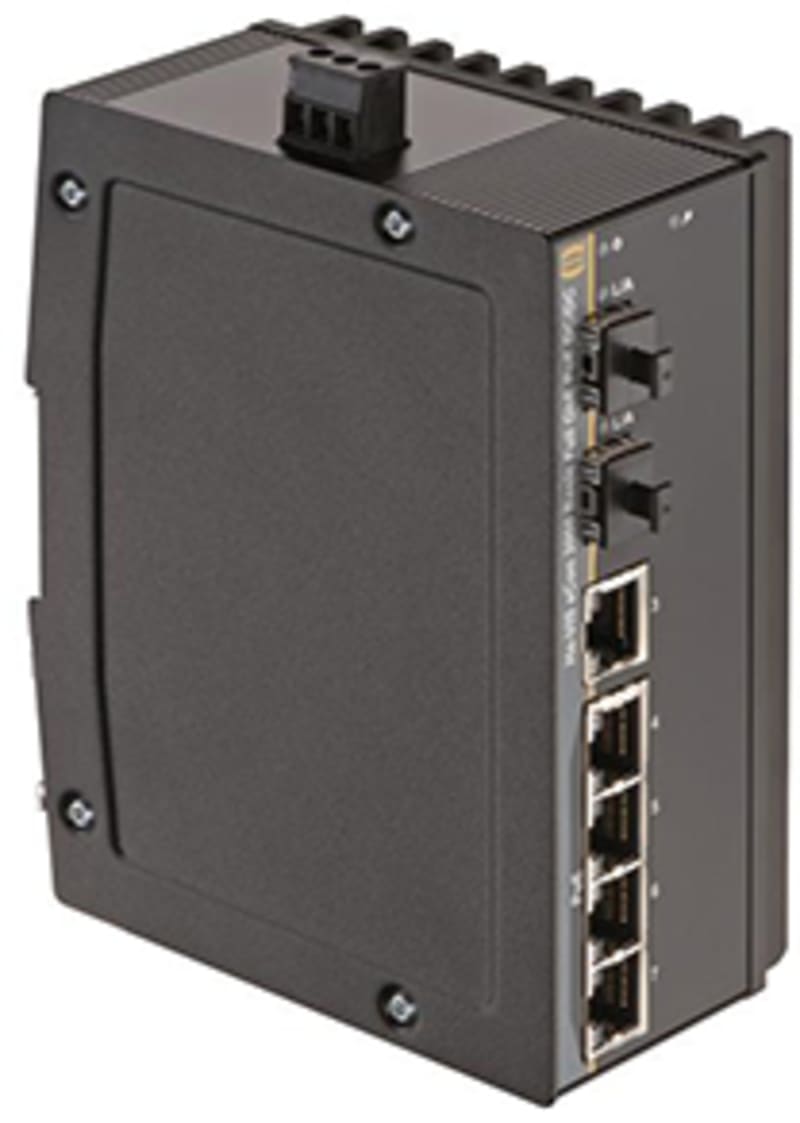

Ha-VIS eCon 3052GBT-AC-PP

Harting 24035052320 Manufacturer description: Industrial Ethernet Switches; Unmanaged; Full Gigabit Ethernet; Nominal voltage: 24 V DC; Total number of ports: 7; 10/100/1000 Mbit/s (RJ45-Ports): 5; 1000 Mbit/s (Mini GBIC-Ports): 2; Operating temperature: -40. +70 °C. eCon 3052GBT-AC-PP.

Manufacturer part number (MPN)

24035052320

EAN / GTIN

5713140195318

HS code

8536.90

Sales unit

pcs

Element

Industrial Ethernet Switches

Specification

Unmanaged

Series

Ha-VIS eCon 3000

Type of Ethernet

Full Gigabit Ethernet

Total number of ports

7

Fixing

35 mm DIN rail acc. to EN 60715

Switching technology

Store and Forward

Frame size

10 kB

MAC table size

8k Entries

Packet buffer size

1 Megabit

Non blocking

Yes

Quality of service

Yes

Energie Efficient Ethernet

Yes

Flow control

Off

Signal contact

No

PoE functionality

Yes

PoE with integrated DC-DC converter

Yes

Jumbo frame support

Yes

Pack contents

Pluggable screw contact for power supply | Assembly instructions

Operating temperature

-40 ... +70 °C

Storage temperature

-40 ... +85 °C

Relative humidity

0.1 ... 95 % Non-condensing (operation) | 0.1 ... 95 % Non-condensing (storage/transport)

Air pressure

≥795 hPa ≈ 2000 m

Degree of protection acc. to IEC 60529

IP30 mated condition

MTBF

560000 h

China RoHS

e

RoHS

compliant

REACH SVHC substances

Not contained

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

ELV status

compliant

California Proposition 65 substances

Yes | Nickel

Material (hood/housing)

Aluminium (anodised) | Steel sheet (powder-coated)

Length

107.5 mm

Width

60 mm

Height

142 mm

EtherNet/IP

No

UL / CSA

UL 508 NRAQ.E253944 | CSA-C22.2 No. 142 NRAQ7.E253944

PROFINET

No

FCC

Yes

Approvals

CE | DNV GL

European customs tariff number

85176200

Packaging size

1

Net weight

896 g

Country of origin

Germany

eCl@ss

19170130 Network switch (general application)

ETIM

EC000734

UNSPSC 24.0

43222612

Nominal voltage

24 V DC

Permissible voltage

18 ... 60 V DC

Surge protection

Yes

Operating current

<5,900 mA @ 24 V DC | <2,950 mA @ 48 V DC

Starting current

<1.6 A @ 24 V DC

Overcurrent protection

12 A at input

Power consumption

<141.6 W @ 24 V DC

Termination method

Pluggable screw contact | LC female

Number of contacts

3

Conductor cross-section

0.08 ... 2.5 mm²

Conductor cross-section (AWG)

AWG 28 ... AWG 12

Pinout

+ / - / FE | Alternative A, MDI-X (1/2 = V-, 3/6 = V+)

Reverse polarity protection

Yes

Supply circuit

SELV (Circuit Breaker 10 A)

Transmission standard

10BASE-Te | 100BASE-TX EEE | 1000BASE-T EEE

Transmission physics

Twisted Pair Cat. 5 | FO

Auto-polarity

Yes

Auto-negotiation

Yes

Auto-MDI(X)

Yes

Transmission length

100 m

10/100/1000 Mbit/s (RJ45-Ports)

5

Data rate

10 Mbit/s | 100 Mbit/s | 1000 Mbit/s

Supported cabling

See IEEE 802.3at, section 33.1.4

Type of PoE

PSE

IEEE Standards

IEEE 802.3af | IEEE 802.3at

Supported PoE mode

Alternative A

Ethernet ports PoE

4

Power supply (PSE)

24 V DC

Output power (PSE) per port

15.4 W | 34.2 W

Total output power (PSE)

61.6 W | 136.8 W

Current per port

375 mA | 638 mA

1000 Mbit/s (Mini GBIC-Ports)

2

HS Code

8536.90
