Harting

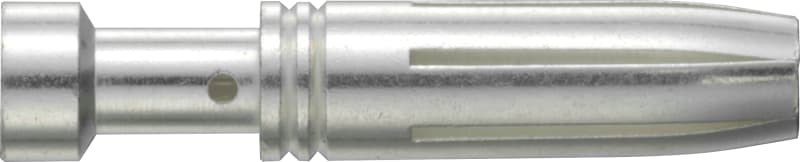

Han E F Crimp Contact Ag 1.5 mm²/ 16 AWG
Part number09330006204EAN / GTIN5713140049949HS code8536.69
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09330006204 Manufacturer description: Crimp contact; Rated current: ≤16 A; Female; Copper alloy; Silver plated; Conductor cross-section: 1.5 mm²; AWG 16. HAN E F CRIMP CONTACT AG 1.5 MM/16AWG.
Technical Specifications
- Manufacturer part number (MPN)
- 09330006204
- EAN / GTIN
- 5713140049949
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Category
- Contacts
- Type of contact
- Crimp contact
- Series
- Han E®
- Termination method
- Crimp termination
- Gender
- Female
- Contact identification
- 2 grooves
- Manufacturing process
- Turned contacts
- Conductor cross-section (mm²)
- 1.5 mm²
- Conductor cross-section (AWG)
- AWG 16
- Rated current
- 16 A
- Contact resistance
- 1 mΩ
- Stripping length
- 7.5 mm
- Mating cycles
- 500
- ECHA SCIP number
- b51e5b97-eeb5-438b-8538-f1771d43c17d
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 100
- Net weight
- 1.509 g
- Country of origin
- Germany
- eCl@ss
- 27440204 Contact for industrial connectors
- ETIM
- EC000796
- UNSPSC 24.0
- 39121522
- Mounting method
- Inserted
- Contact type
- Bus
- Ambient temperature
- -40–125 °C
- Type of electric connection
- Crimp connection
- Material of contact surface
- Silver
- Strip length
- 7.5 mm
- Diameter plug-in contact
- 4.5 mm
- Connectable conductor cross section multi-wired
- 1.5 mm²
- Max. rated current of one contact
- 16 A
- Material contact
- Other copper alloys
- Min. number of insertion cycles
- 500
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 5713140049949
- SAP 1000444521
- Code 8239508
Product Documentation
Document preview: HARTING 09330006204 — Data Sheet (OEM)
