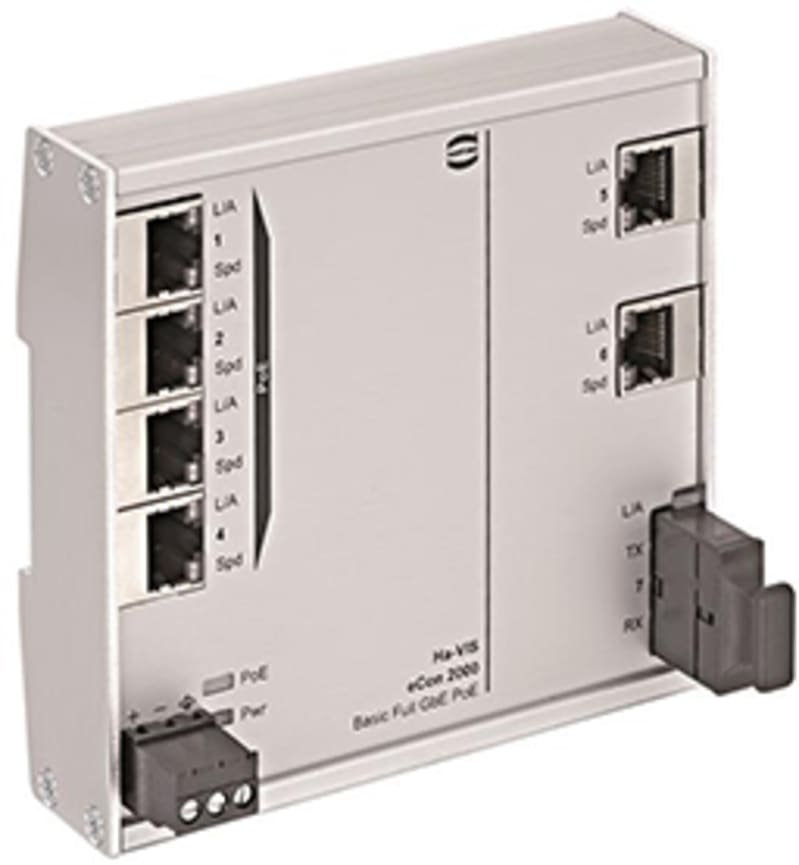

Ha-VIS eCon 2061GBT-AD-P

Harting 24024061120 Manufacturer description: Industrial Ethernet Switches; Unmanaged; Full Gigabit Ethernet; Nominal voltage: 48, 54; Total number of ports: 7; 10/100/1000 Mbit/s (RJ45-Ports): 6; 1000 Mbit/s (SC-Ports, SX): 1; Operating temperature: -40. +70 °C. eCon 2061GBT-AD-P.

Manufacturer part number (MPN)

24024061120

EAN / GTIN

5713140147652

HS code

8536.90

Sales unit

pcs

Element

Industrial Ethernet Switches

Specification

Unmanaged

Series

Ha-VIS eCon 2000

Type of Ethernet

Full Gigabit Ethernet

Total number of ports

7

Fixing

35 mm DIN rail acc. to EN 60715

Switching technology

Store and Forward

Frame size

10 kB

MAC table size

8k Entries

Packet buffer size

1 Megabit

Non blocking

Yes

Quality of service

Yes

Energie Efficient Ethernet

Yes

Flow control

Off

Signal contact

No

PoE functionality

Yes

Jumbo frame support

Yes

Pack contents

Pluggable screw contact for power supply | Assembly instructions

Operating temperature

-40 ... +70 °C

Storage temperature

-40 ... +85 °C

Relative humidity

0.1 ... 95 % Non-condensing (operation) | 0.1 ... 95 % Non-condensing (storage/transport)

Air pressure

≥795 hPa ≈ 2000 m

Degree of protection acc. to IEC 60529

IP30 mated condition

MTBF

980000 h

China RoHS

e

RoHS

compliant

REACH SVHC substances

Not contained

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

ELV status

compliant

California Proposition 65 substances

Yes

Material (hood/housing)

Aluminium (anodised)

Length

27.3 mm

Width

120 mm

Height

113.5 mm

EtherNet/IP

No

UL / CSA

UL 508 NRAQ.E253944 | CSA-C22.2 No. 142 NRAQ7.E253944

PROFINET

No

FCC

Yes

Approvals

CE | DNV GL

European customs tariff number

85176200

Packaging size

1

Net weight

431 g

Country of origin

Germany

eCl@ss

19170130 Network switch (general application)

ETIM

EC000734

UNSPSC 24.0

43222612

Nominal voltage

48 V DC | 54 V DC

Permissible voltage

44 ... 57 V DC

Surge protection

Yes

Operating current

<1,400 mA @ 48 V DC | <2,390 mA @ 54 V DC

Starting current

<6.4 A @ 48 V DC | <7.2 A @ 54 V DC

Overcurrent protection

4 A at input

Power consumption

<70.1 W @ 48 V DC | <141.4 W @ 54 V DC

Termination method

Pluggable screw contact | SC duplex | Female

Number of contacts

3

Conductor cross-section

0.08 ... 2.5 mm²

Conductor cross-section (AWG)

AWG 28 ... AWG 12

Pinout

+ / - / FE | Alternative A, MDI-X (1/2 = V-, 3/6 = V+)

Reverse polarity protection

Yes

Supply circuit

SELV (Circuit Breaker 10 A)

Transmission standard

10BASE-Te | 100BASE-TX EEE | 1000BASE-T EEE | 1000BASE-SX

Transmission physics

Twisted Pair Cat. 5 | FO

Auto-polarity

Yes

Auto-negotiation

Yes

Auto-MDI(X)

Yes

Transmission length

100 m | 0.55 km

10/100/1000 Mbit/s (RJ45-Ports)

6

Data rate

10 Mbit/s | 100 Mbit/s | 1000 Mbit/s

Input power

-17

Output power

-9.5 ... -4 dBm

Fiber

Multimode

Wavelength

850 nm

1000 Mbit/s (SC-Ports, SX)

1

Supported cabling

See IEEE 802.3at, section 33.1.4

Type of PoE

PSE

IEEE Standards

IEEE 802.3af | IEEE 802.3at

Supported PoE mode

Alternative A

Ethernet ports PoE

4

Power supply (PSE)

48 V DC | 54 V DC

Output power (PSE) per port

15.4 W | 34.2 W

Total output power (PSE)

61.6 W | 136.8 W

Current per port

375 mA | 638 mA

HS Code

8536.90
