Harting

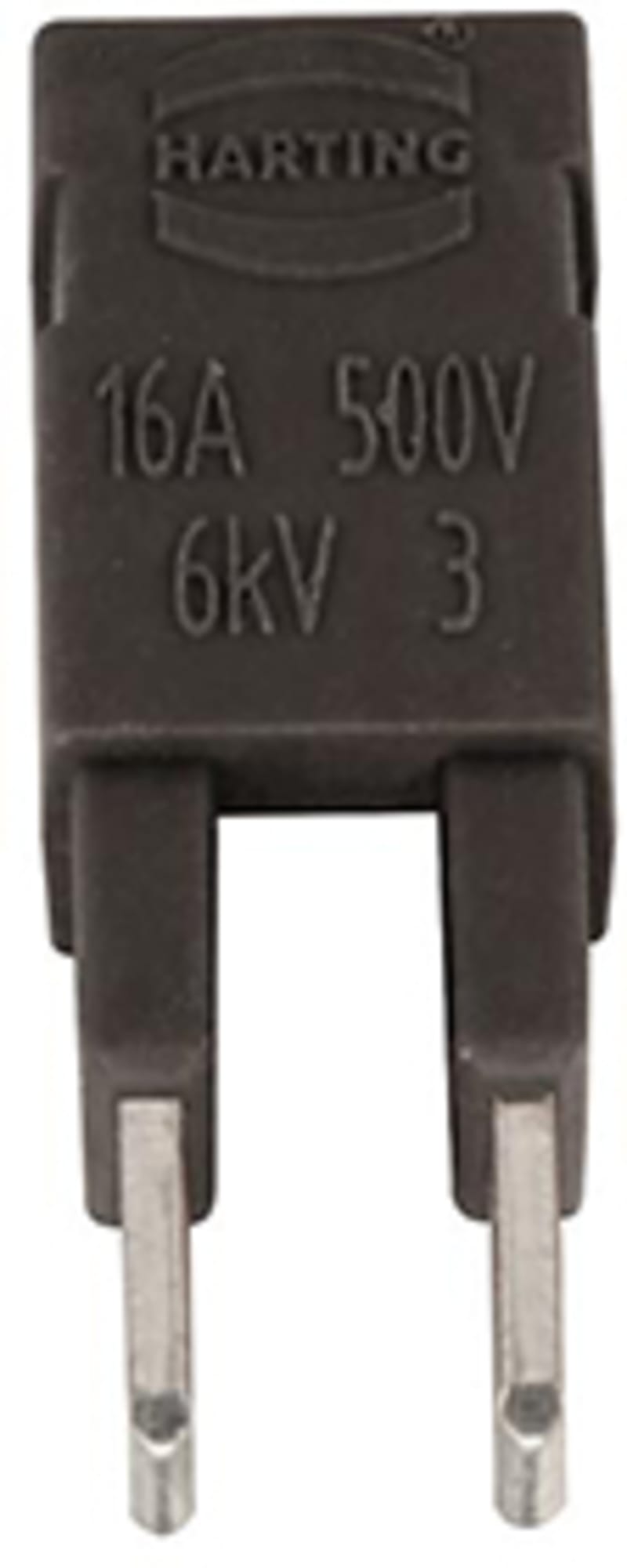

Jumper Across 2X1 black 16A
Part number09330009822EAN / GTIN5713140192560
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Bro, 2 x 1, Transverse, Polyamide, dark blue. Manufacturer description: Plug-in jumper; 2x 1, Transverse; Polyamide (PA); RAL 5004 (black blue).
Technical Specifications
- Manufacturer part number (MPN)
- 09330009822
- EAN / GTIN
- 5713140192560
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Category
- Accessories
- Series
- Han® ES Press
- Type of accessory
- Plug-in jumper
- Description of the accessory
- 2x 1 | Transverse
- Details
- When using plug-in jumpers within Han® ES Press hoods of high construction must be used.
- Rated current
- 16 A
- Rated voltage
- 500 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 1 mΩ
- Limiting temperature
- -40 ... +125 °C
- Mating cycles
- 5
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Tin plated
- Material (accessories)
- Polyamide (PA)
- Colour (accessories)
- RAL 5004 (black blue)
- Material flammability class acc. to UL 94
- V-0
- European customs tariff number
- 85389099
- Packaging size
- 5
- Net weight
- 1.18 g
- Country of origin
- China
- eCl@ss
- 27440292 Connector component (accessories)
- ETIM
- EC002943
- UNSPSC 24.0
- 39121400
Cross References
- EAN 5713140192560
- SAP 1000744065
- Code 8424762
Product Documentation
Document preview: HARTING 09330009822 — Data Sheet (OEM)
